The thermal resistance of the PSS15S73FT is typically around 1.5°C/W, but this can vary depending on the specific application and cooling conditions.
Yes, the PSS15S73FT is designed for high-reliability applications and is suitable for use in aerospace, automotive, and industrial control systems.
Mitsubishi Electric recommends a PCB layout with a minimum of 2 oz copper thickness, and a thermal via array under the device to ensure good heat dissipation. A detailed layout guide is available from Mitsubishi Electric upon request.
Mitsubishi Electric recommends using a soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's also important to ensure the PCB is clean and free of oxidation before soldering.
The PSS15S73FT is rated for operation from -40°C to 150°C, but derating is required above 125°C. Consult the datasheet for detailed derating information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSS15S73FT Overview

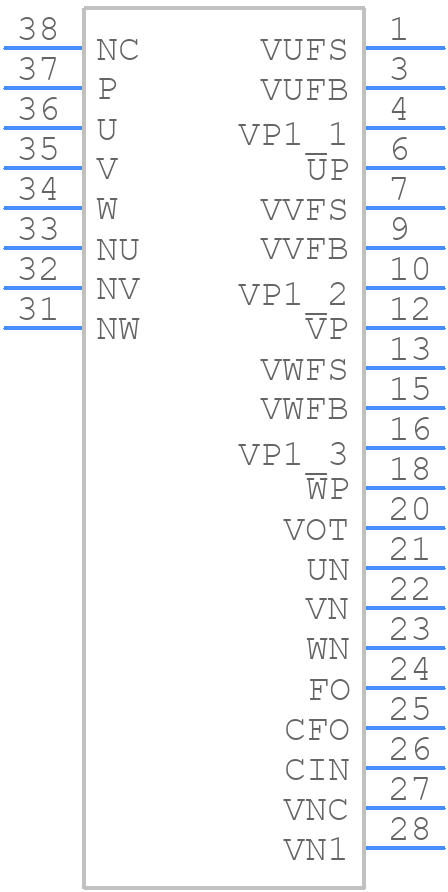

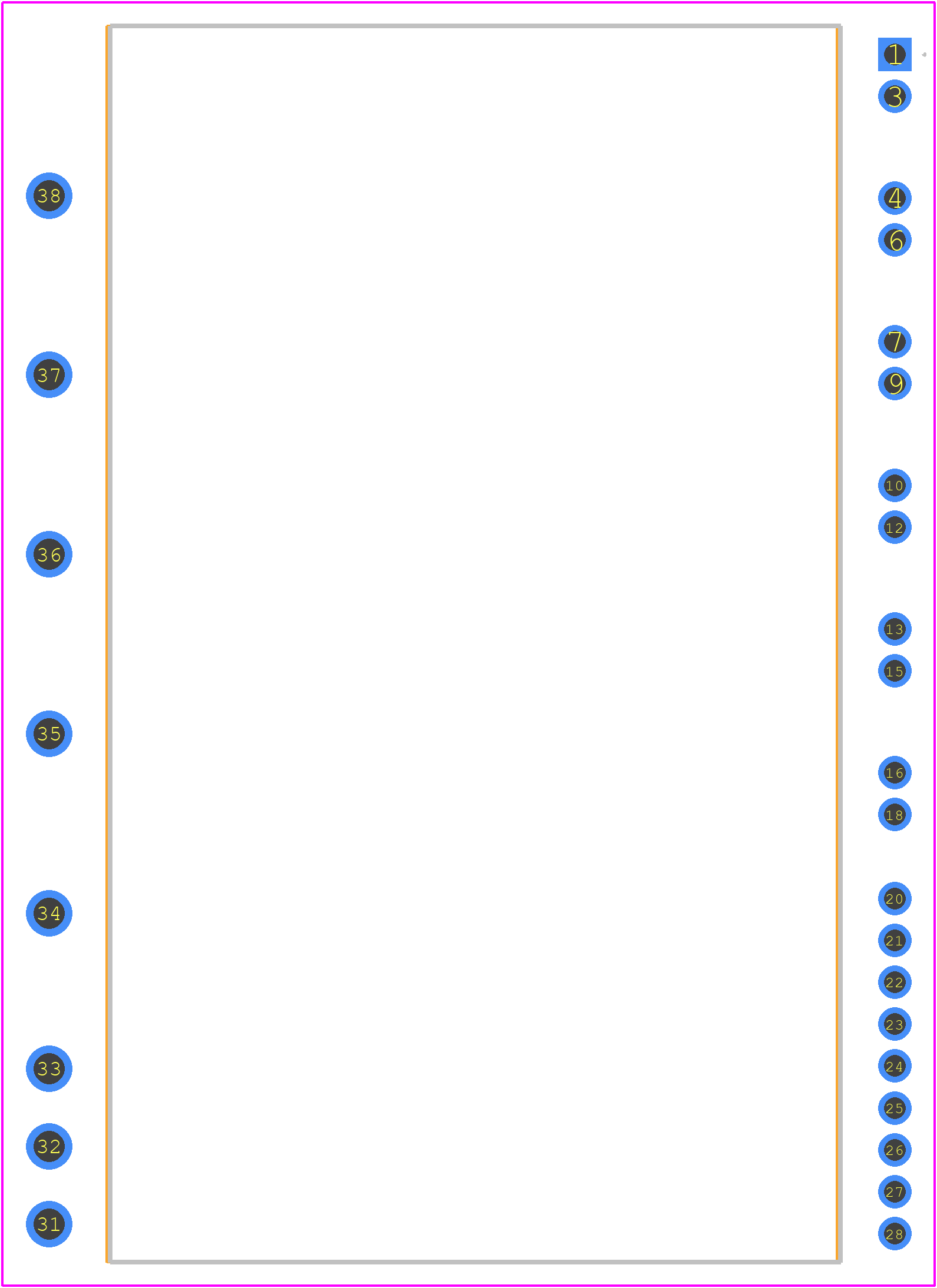

Use the download button to access the PSS15S73FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSS15,
or try a keyword search, such as Motion Control Electronics
