A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended for optimal thermal performance. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to derate the power dissipation according to the temperature derating curve provided in the datasheet. Additionally, a heat sink or thermal interface material can be used to improve heat dissipation.
To prevent damage, it is recommended to handle the device by the body and not the leads, store the device in a dry and clean environment, and avoid exposure to mechanical stress, moisture, and extreme temperatures.
The input and output capacitors should be selected based on the operating frequency, output current, and voltage ripple requirements. A low-ESR capacitor with a high ripple current rating is recommended for the output capacitor, while a high-frequency, low-ESL capacitor is recommended for the input capacitor.
To minimize EMC and EMI, it is recommended to use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead to filter the input and output lines. Additionally, the device should be placed away from other noise-sensitive components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSS35S92F6-AG Overview

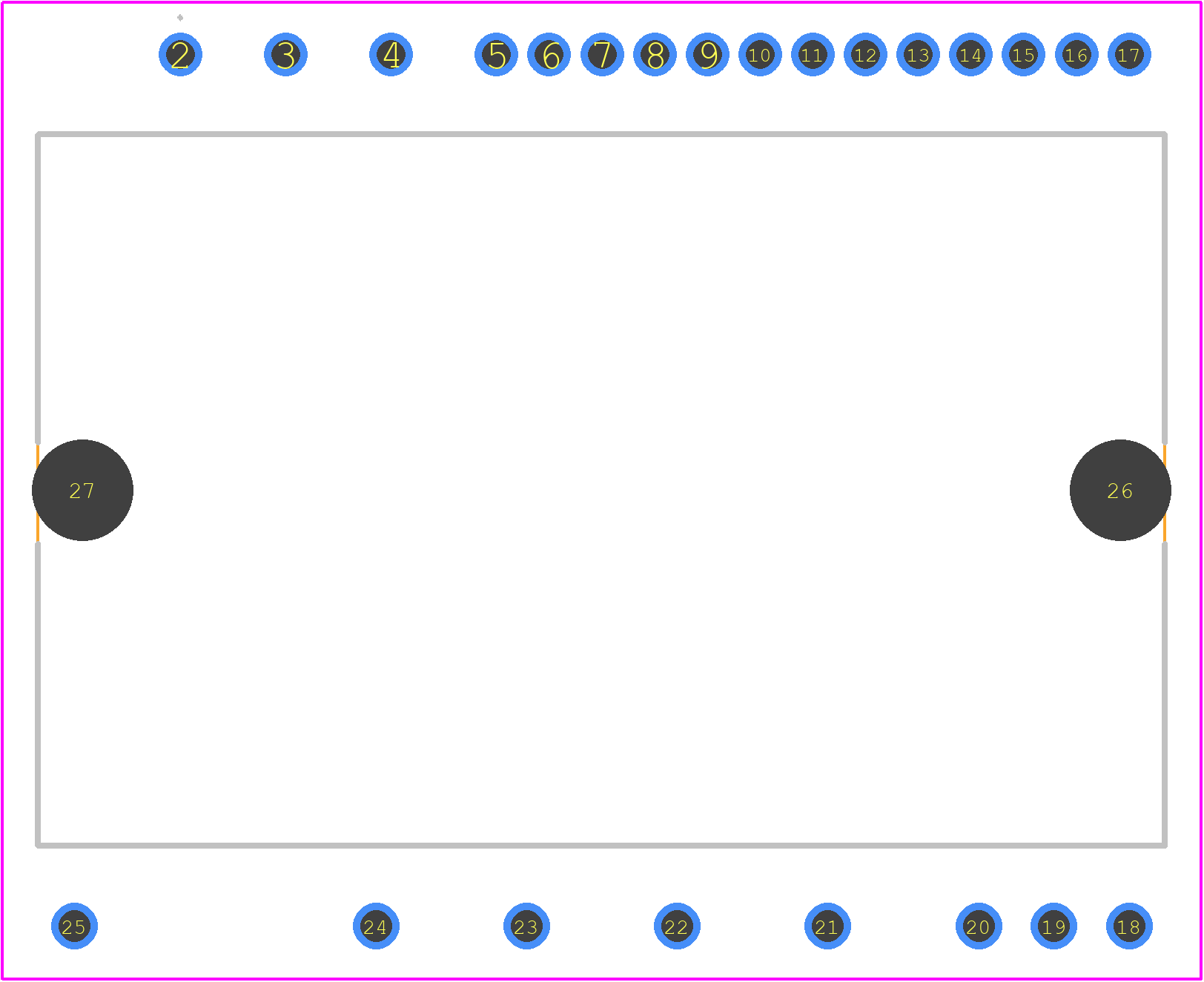

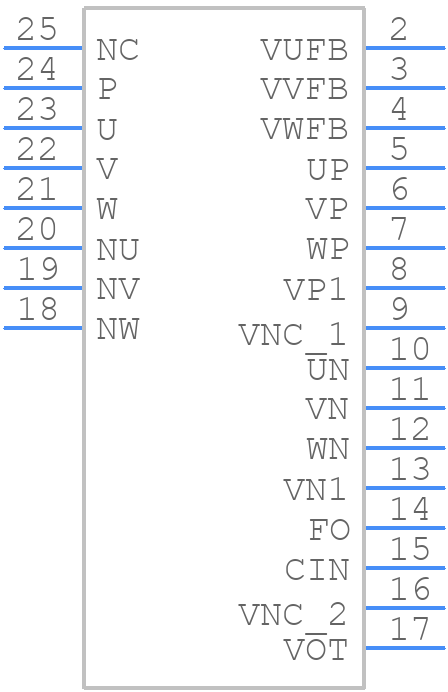

Use the download button to access the PSS35S92F6-AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSS35,
or try a keyword search, such as Motion Control Electronics
