PSS35SA2FT - Mitsubishi

Description: Power Driver Module IGBT 3 Phase 1.2 kV 35 A 42-PowerDip Module (1.404", 35.67mm)

Download PSS35SA2FT Model

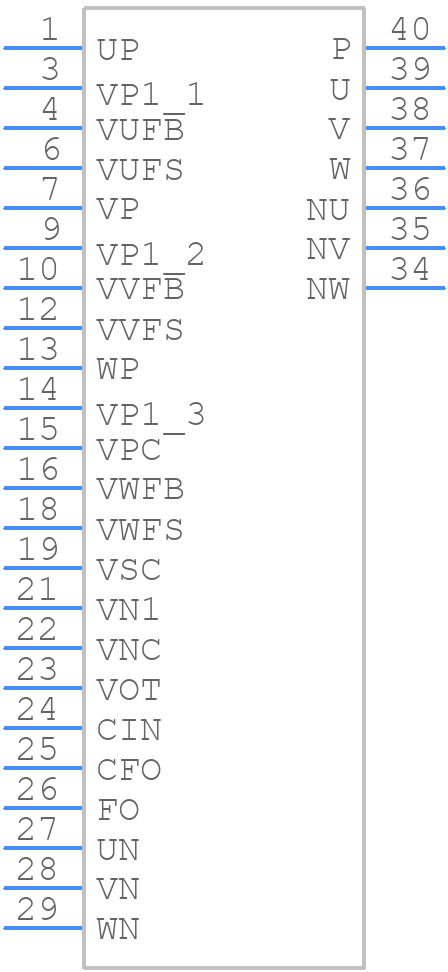

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

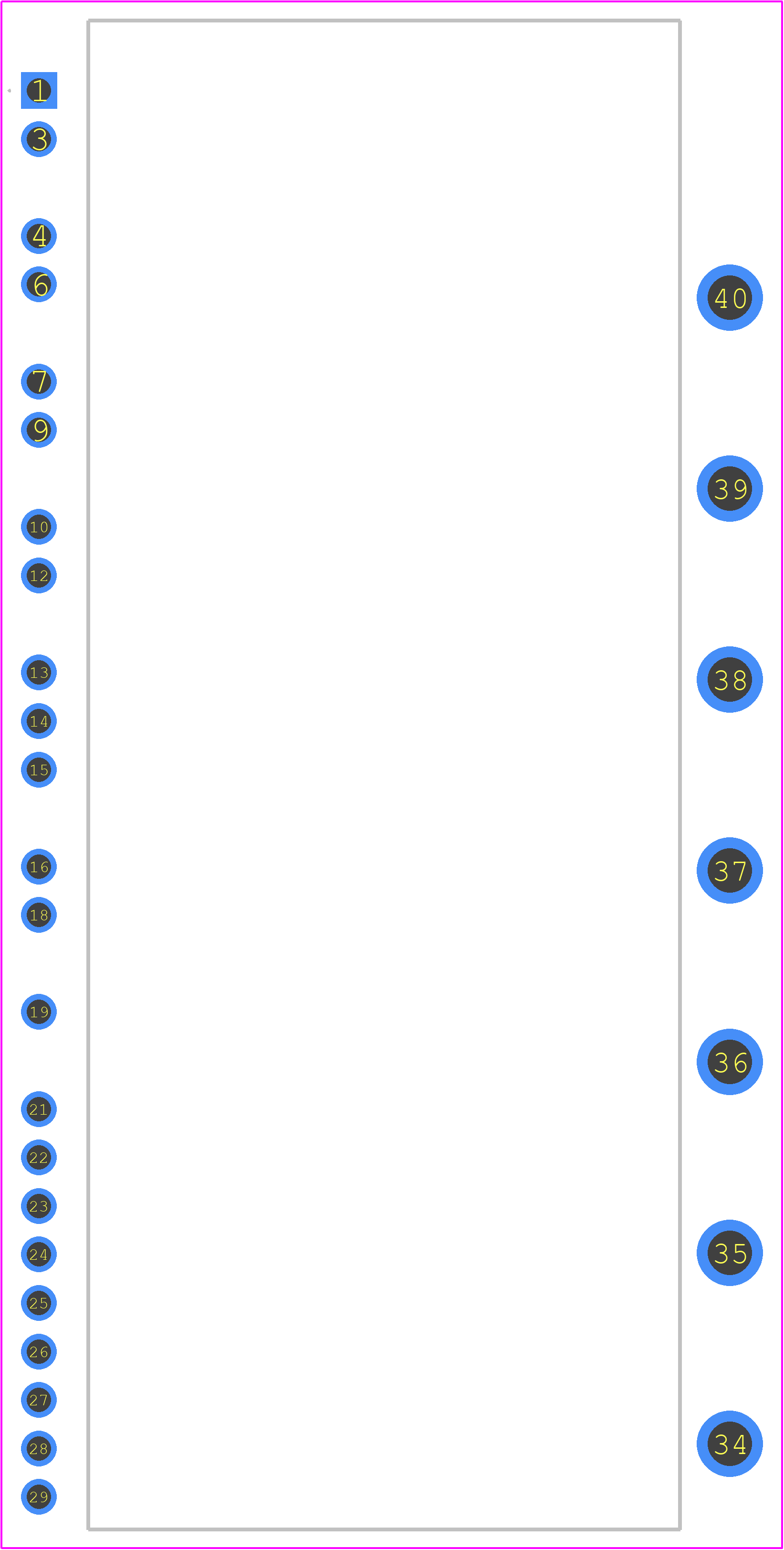

PCB Footprints
PSS35SA2FT - Mitsubishi PCB footprint - Other - Other - 42-PowerDip Module
click to zoom
3D Models
PSS35SA2FT - Mitsubishi  - 3D model - Other - 42-PowerDip Module
click to zoom

PSS35SA2FT Details

  • Manufacturer Part Number:

    PSS35SA2FT

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    9

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XXMA-T42

  • Length:

    79 mm

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    xma

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    9.1 mm

  • Supply Current-Max (Isup):

    5.6 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    UNSPECIFIED

  • Width:

    31 mm

PSS35SA2FT Frequently Asked Questions (FAQs)

  • Mitsubishi Electric recommends a 2-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the power supply by 1% for every 1°C above 40°C. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • Mitsubishi Electric recommends using a low-ESR ceramic capacitor with a value of 10-22 μF for optimal performance. The capacitor should be placed as close to the input pins as possible.
  • To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the device if it falls outside the recommended operating range.
  • Mitsubishi Electric recommends using a low-ESR ceramic capacitor with a value of 10-22 μF for optimal performance. The capacitor should be placed as close to the output pins as possible.
