PSS40S93F6-AG - Mitsubishi

Description: Discrete Semiconductor Modules Super Mini DIPIPM Version 7 6-PAC 600V , 40A , 1500Vrms , -30℃ ~ +150℃

Download PSS40S93F6-AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

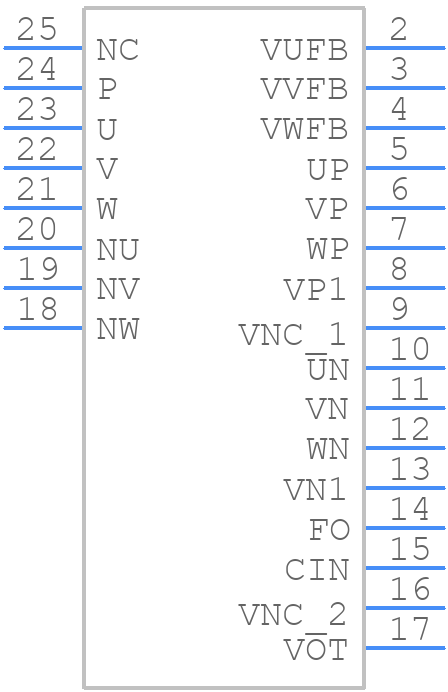

PSS40S93F6-AG - Mitsubishi - PCB symbol
click to zoom
PCB Footprints

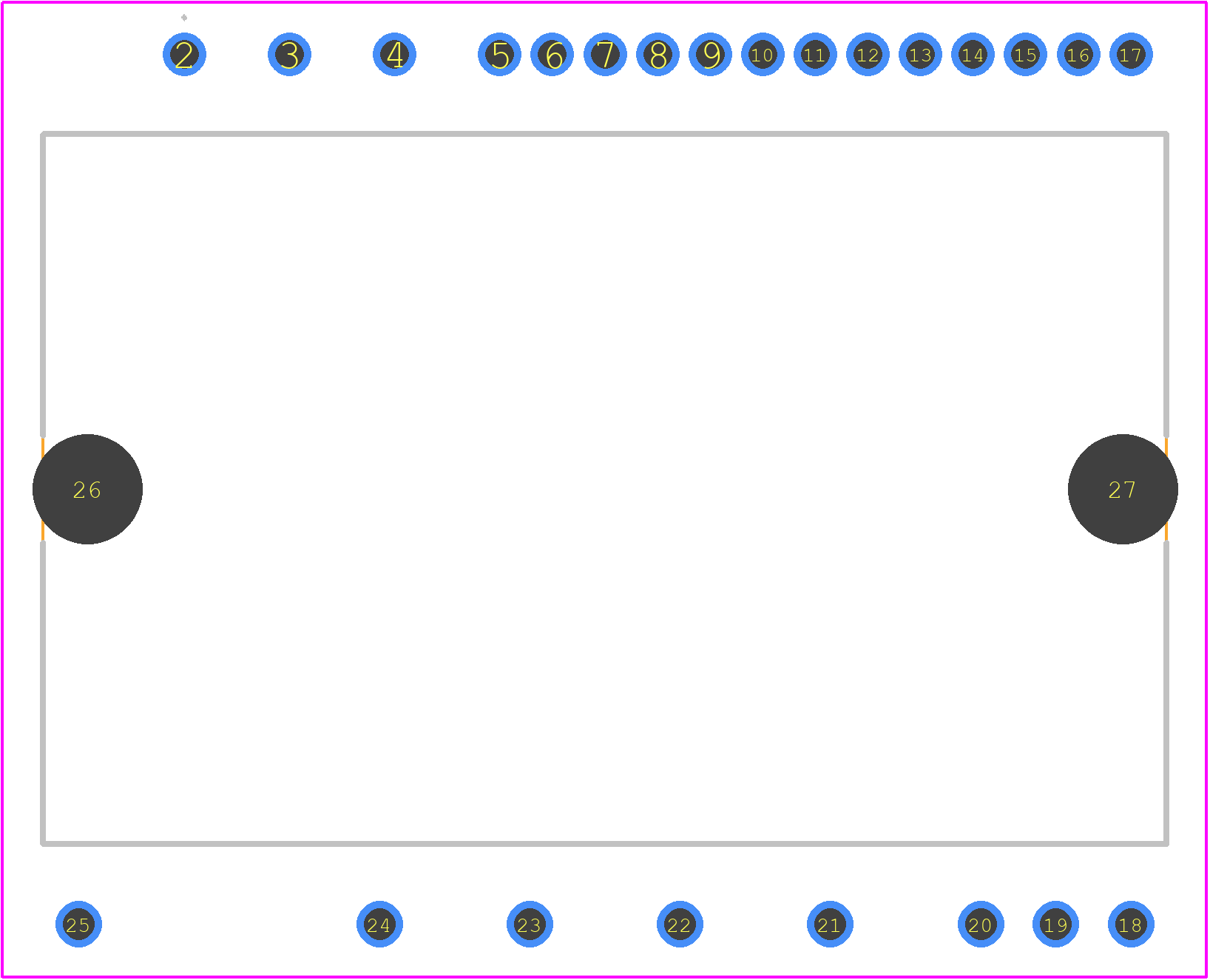

PSS40S93F6-AG - Mitsubishi PCB footprint - Other - Other - DIPIPM-25_2025
click to zoom
3D Models
PSS40S93F6-AG - Mitsubishi - 3D model - Other - DIPIPM-25_2025
click to zoom

PSS40S93F6-AG Details

  • Manufacturer Part Number:

    PSS40S93F6-AG

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSS40S93F6-AG Overview

Use the download button to access the PSS40S93F6-AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSS40, or try a keyword search, such as Motion Control Electronics
