PT2399S - Princeton Technology Corp

Description: Echo Processor IC

Download PT2399S Model

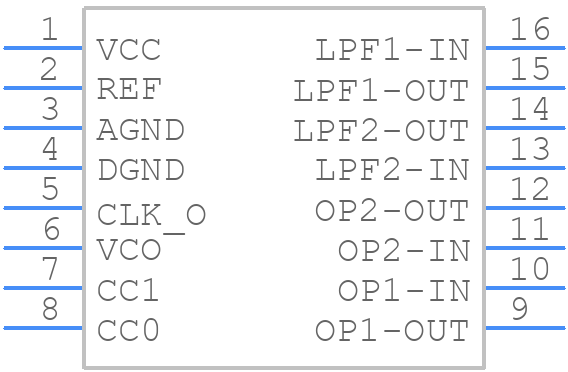

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PT2399S - Princeton Technology Corp PCB footprint - Small Outline Packages - Small Outline Packages - 16 PINS, SOP, 300 MIL
click to zoom
3D Models
PT2399S - Princeton Technology Corp  - 3D model - Small Outline Packages - 16 PINS, SOP, 300 MIL
click to zoom

PT2399S Details

  • Manufacturer Part Number:

    PT2399S

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Princeton Technology Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

PT2399S Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD. This ensures that the internal voltage regulators are properly initialized.
  • To optimize the PT2399S for low power consumption, use a low-frequency clock input, reduce the voltage supply to the minimum required, and use the power-down mode when not in use.
  • The maximum clock frequency that can be used with the PT2399S is 12.288 MHz. Exceeding this frequency may cause instability or incorrect operation.
  • To ensure proper bypassing, use a 10uF capacitor between VCC and GND, and a 100nF capacitor between VDD and GND. Additionally, use a 10uF capacitor between AVCC and GND if using the analog circuitry.
  • The internal voltage regulator in the PT2399S generates a stable 3.3V supply for the internal circuitry, allowing the device to operate from a single 5V supply.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PT2399S Overview

Use the download button to access the PT2399S schematic symbol, PCB footprint, and 3D model.
