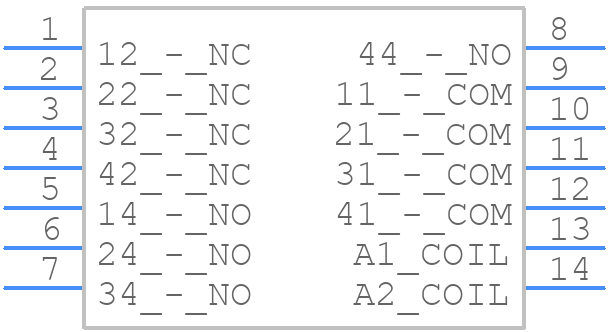

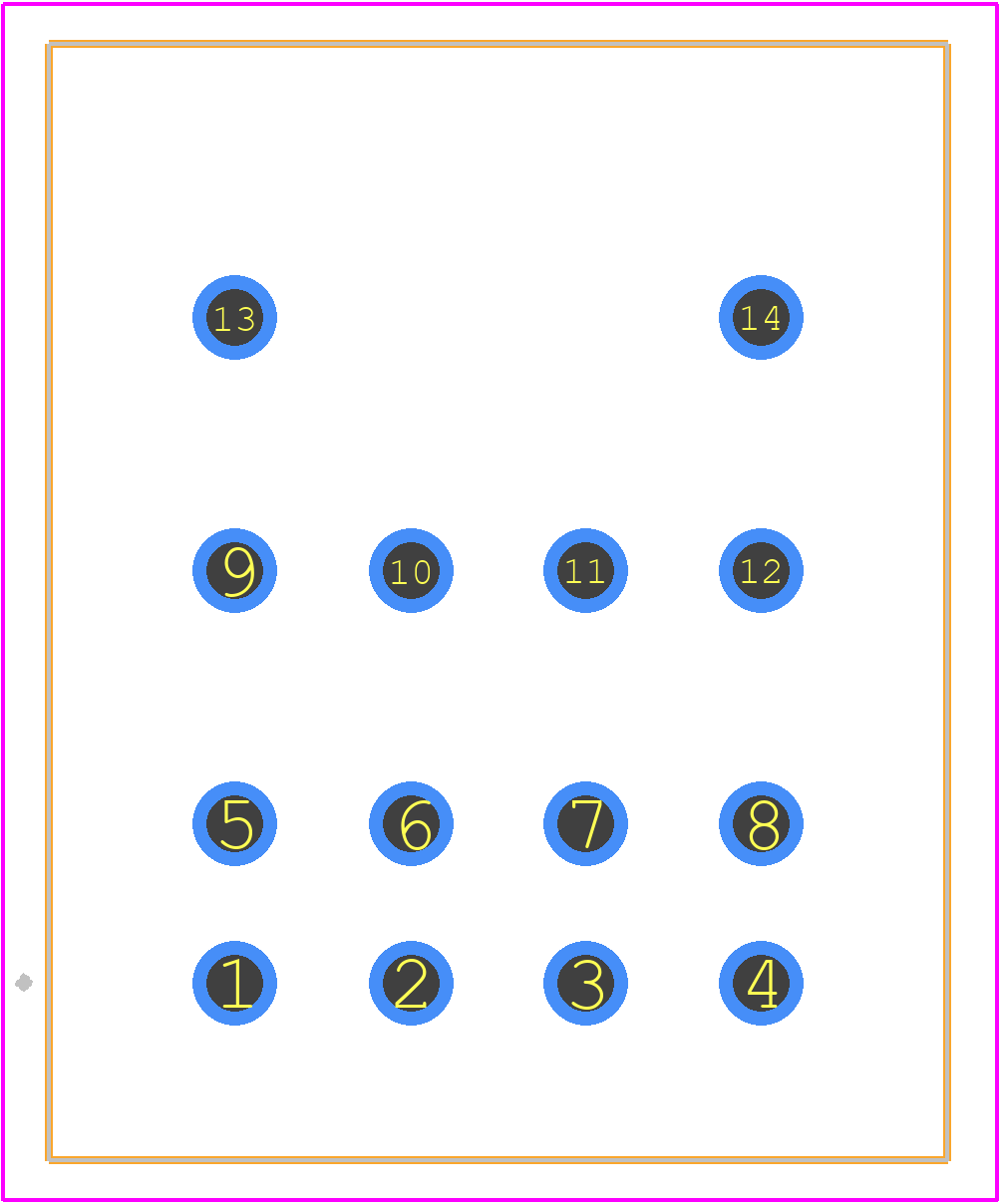

PT571024 - TE Connectivity

PT571024 Details

• Manufacturer Part Number:

  PT571024

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.75

• Factory Lead Time:

  27 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.59

• Additional Feature:

  RELEASE TIME WITH DIODE

• Body Breadth:

  22.5 mm

• Body Height:

  30 mm

• Body Length or Diameter:

  28 mm

• Coil Current(DC)-Max:

  0.031 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  741 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  777 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  1500VA@400VAC

• Contact (AC) Max Rating R Load:

  6A@240VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  6 A

• Contact Voltage(AC)-Max:

  240 V

• Contact/Output Supply Type:

  AC

• Dielectric Strength Between Coil and Contacts:

  2000 Vrms

• Dielectric Strength Between Open Contacts:

  1200 Vrms

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• Input Switching Control Type:

  Random

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  14

• Operate Time:

  23 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  28 X 22.5 X 30

• Reference Standard:

  UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  4 FORM C

• Relay Function:

  4PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  15 ms

• Sealing:

  RT2

• Surface Mount:

  NO

• Terminal Length:

  0.004099568199136398 inch

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  30 g
