PTAS5805MPWPR - Texas Instruments

Description: TAS5805M 23-W, Digital Input, Stereo, Closed-Loop Class-D Audio Amplifier with Extended Processing

Download PTAS5805MPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

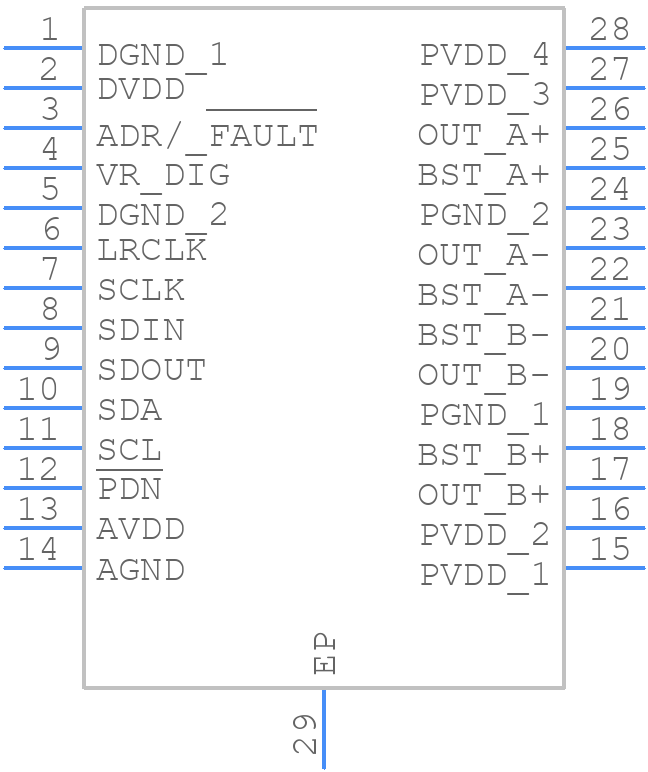

PTAS5805MPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PTAS5805MPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M
click to zoom
3D Models
PTAS5805MPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0028M
click to zoom

PTAS5805MPWPR Details

  • Manufacturer Part Number:

    PTAS5805MPWPR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-05-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTAS5805MPWPR Overview

Use the download button to access the PTAS5805MPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTAS5, or try a keyword search, such as Audio Control ICs
