PTAS5825MRHBR - Texas Instruments

Description: 2x38-W, Inductor-Less, Digital-Input, Closed-Loop Class-D Audio Amplifier with 96/192kHz Processing

Download PTAS5825MRHBR Model
Schematic

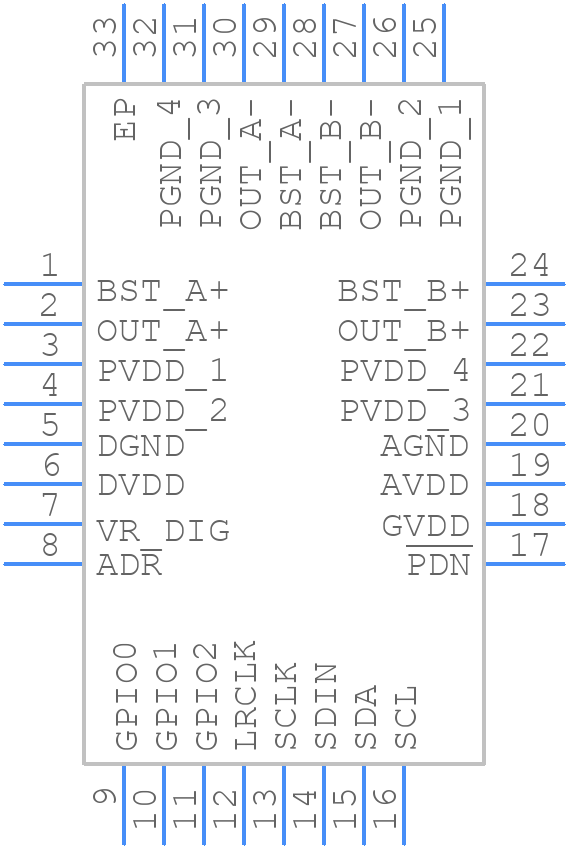

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PTAS5825MRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
PTAS5825MRHBR - Texas Instruments  - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

PTAS5825MRHBR Details

  • Manufacturer Part Number:

    PTAS5825MRHBR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-01-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

PTAS5825MRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow a few additional guidelines. Ensure a solid ground plane under the device, use thermal vias to dissipate heat, and keep the thermal pad connected to the ground plane. A good layout can reduce thermal resistance and improve overall performance.
  • When selecting input capacitors, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). A minimum capacitance of 10uF is recommended, with an ESR of less than 100mΩ. X5R or X7R ceramic capacitors are suitable options. Ensure the capacitors are placed close to the device's input pins to minimize parasitic inductance.
  • The PTAS5825MRHBR can deliver up to 2.5A of output current. However, this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the device's thermal derating curves and output current limitations in the datasheet to ensure safe operation.
  • The PTAS5825MRHBR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will limit the output current when the voltage across Rs exceeds 50mV. Adjust the value of Rs according to your specific application requirements.
  • The PTAS5825MRHBR can operate with input voltages between 2.7V and 5.5V. However, for optimal performance and efficiency, it's recommended to operate within the 3.3V to 5V range. Be sure to check the device's performance characteristics and power consumption within your specific input voltage range.
