Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PTD904-2015P-C204
- Part Number PTD904-2015P-C204
- Manufacturer Bourns
- Pin Count 12
- Part Category Variable Resistor
- Package Category Other

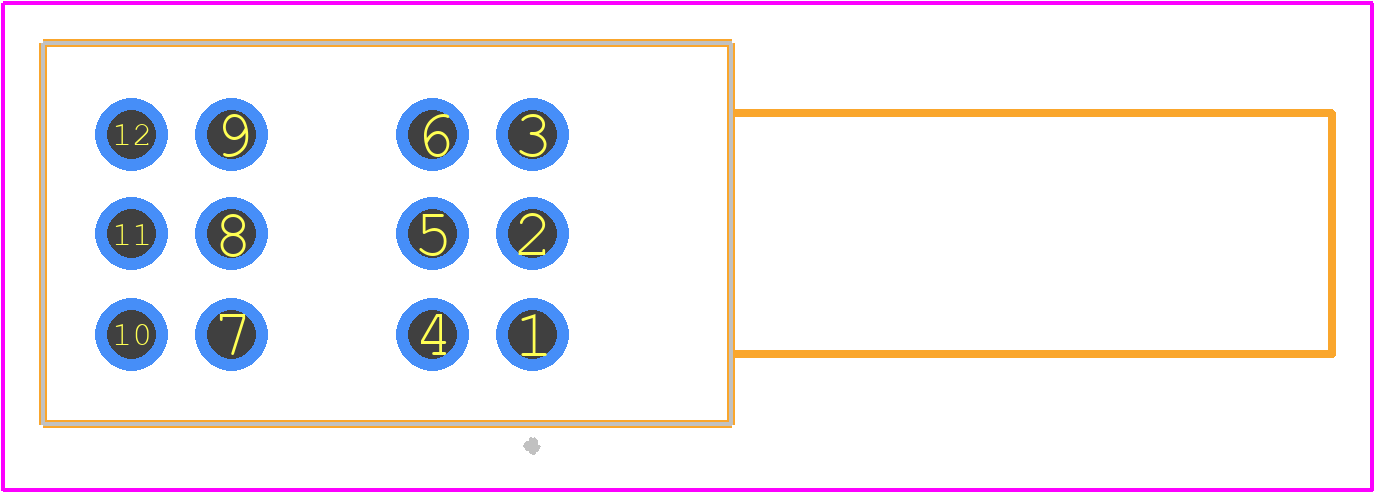

- Footprint Name Other - PTD904-2015K-C503-1
- Released Date Dec 10, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PTD904-2015P-C204 Details
-
Manufacturer Part Number:
PTD904-2015P-C204
-
Manufacturer:
Bourns Inc
Trust Checks
Expert Contribution
System Verified
Community Approved
PTD904-2015P-C204 Overview
Use the download button to access the PTD904-2015P-C204 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PTD90,
or try a keyword search, such as Potentiometers
