PTEA404120N2AD - Texas Instruments

Description: TEXAS INSTRUMENTS - PTEA404120N2AD - IC, CONV DC-DC 48VIN 4.2A HORZ T/H

Download PTEA404120N2AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

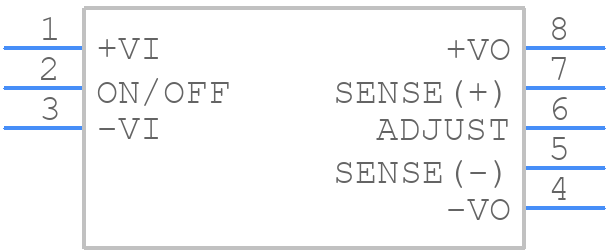

PTEA404120N2AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

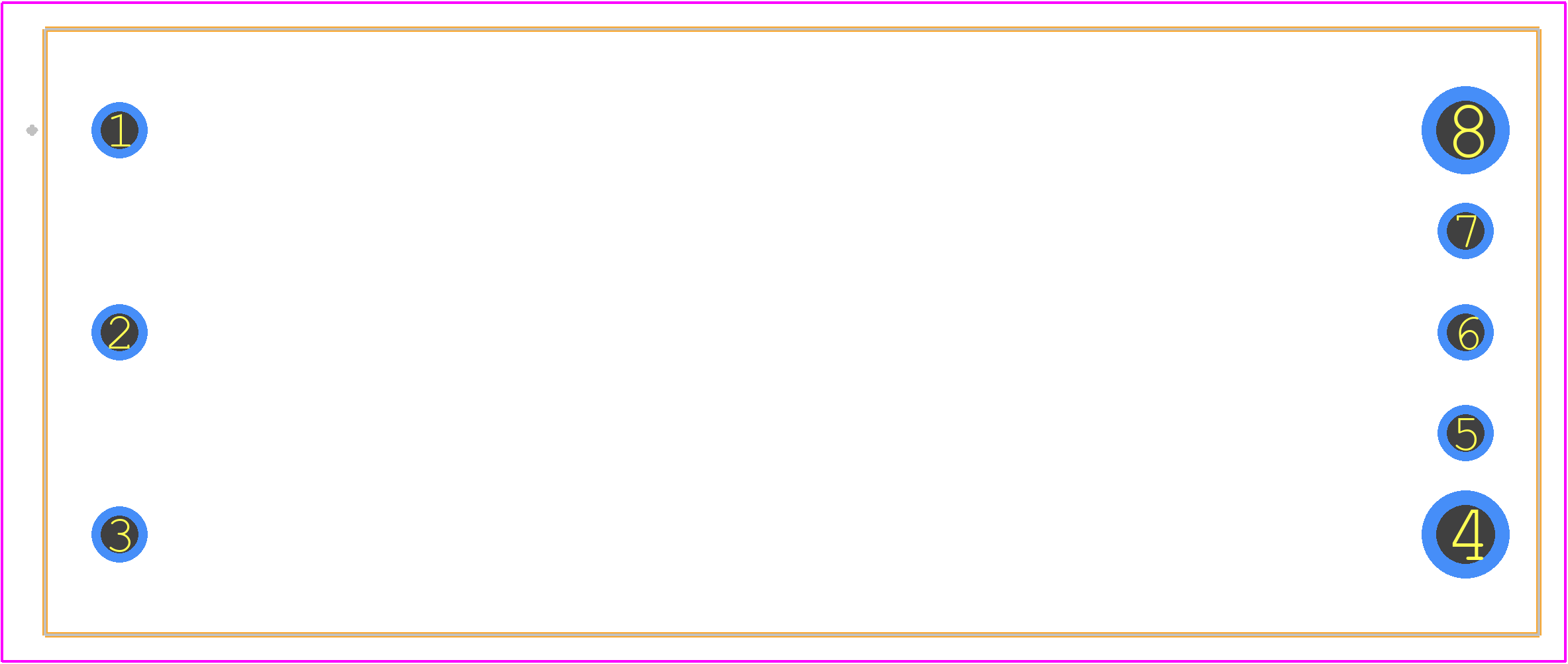

PTEA404120N2AD - Texas Instruments PCB footprint - Other - Other - EAW (R-PDSS-T8)
click to zoom
3D Models
PTEA404120N2AD - Texas Instruments - 3D model - Other - EAW (R-PDSS-T8)
click to zoom

PTEA404120N2AD Details

  • Manufacturer Part Number:

    PTEA404120N2AD

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.40.95.80

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-T8

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.2 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

PTEA404120N2AD Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Use a soft-start circuit to limit inrush current during start-up, and ensure a controlled shutdown sequence to prevent voltage spikes and oscillations.
  • Use a combination of X-capacitors, Y-capacitors, and common-mode chokes to filter out electromagnetic interference (EMI) and reduce noise. Ensure proper PCB layout and component placement to minimize noise coupling.
  • Adjust the feedback resistors and capacitors to optimize the output voltage regulation and transient response. Use a type-III compensation network to improve stability and transient response.
  • Ensure good thermal contact between the device and heat sink, and use thermal interface materials (TIMs) to minimize thermal resistance. Consider the device's power dissipation, ambient temperature, and airflow when designing the thermal management system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTEA404120N2AD Overview

Use the download button to access the PTEA404120N2AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTEA4, or try a keyword search, such as Power Supply Modules
