The maximum operating temperature range for the PTH04T261WAD is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the power dissipation at higher temperatures to ensure reliable operation.
To ensure proper thermal management, it's essential to provide a good thermal interface between the device and the heat sink or PCB. Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and ensure the heat sink is properly attached to the device. Additionally, follow the recommended PCB layout and thermal design guidelines provided in the datasheet.
The recommended input capacitor value is 10 μF to 22 μF, with an X7R or X5R dielectric type. This ensures stable operation and minimizes input voltage ripple. However, the optimal capacitor value may vary depending on the specific application and input voltage conditions.
Yes, the PTH04T261WAD is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is designed to operate in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot common issues, start by verifying the input voltage, output load, and thermal design. Check for proper thermal management, ensure the input capacitor is properly sized, and verify the output voltage is within the specified range. If issues persist, consult the datasheet and application notes for troubleshooting guidelines or contact Texas Instruments' support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTH04T261WAD Overview

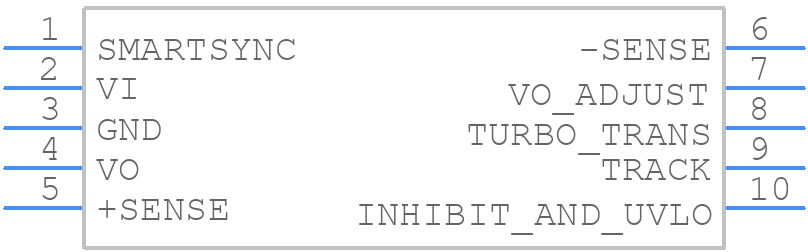

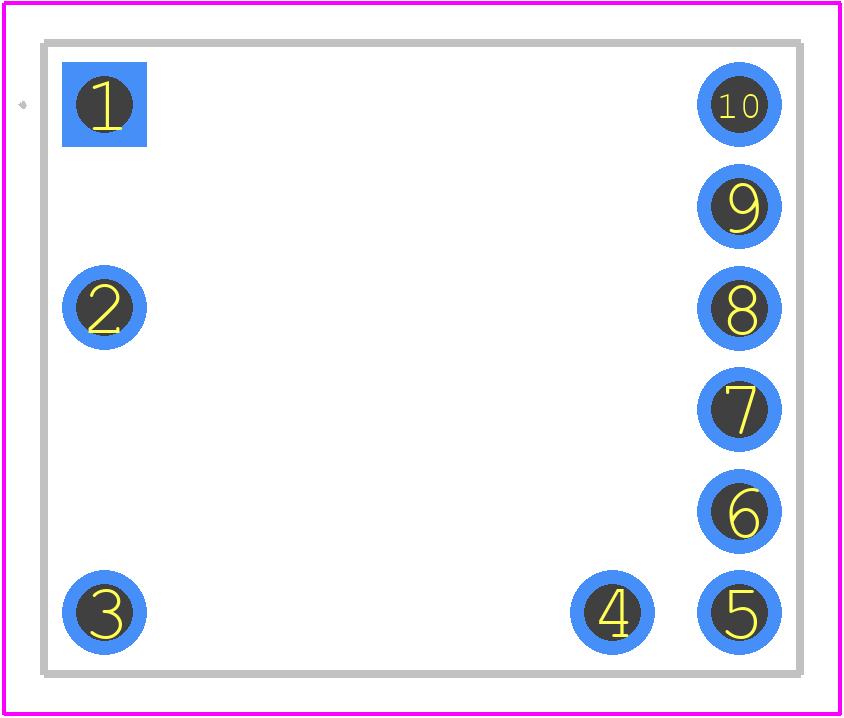

Use the download button to access the PTH04T261WAD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTH04,
or try a keyword search, such as Power Supply Modules
