The maximum input voltage that can be applied to the PTH05060WAH is 60V, as specified in the datasheet. However, it's recommended to derate the input voltage to ensure reliable operation and to prevent damage to the device.
To ensure the PTH05060WAH operates within its thermal limits, it's essential to provide adequate heat sinking and airflow. The device's thermal resistance (θJA) is 10°C/W, so a heat sink with a thermal resistance of 10°C/W or lower is recommended. Additionally, ensure good airflow around the device to prevent overheating.
The minimum input capacitance required for the PTH05060WAH is 10uF, as specified in the datasheet. However, it's recommended to use a higher capacitance value (e.g., 22uF or 47uF) to ensure stable operation and to filter out input voltage ripple.
Yes, the PTH05060WAH is suitable for high-reliability applications. It's built with high-reliability components and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the PTH05060WAH, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of sufficient value. Check for signs of overheating, and ensure that the device is properly heat-sinked. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTH05060WAH Overview

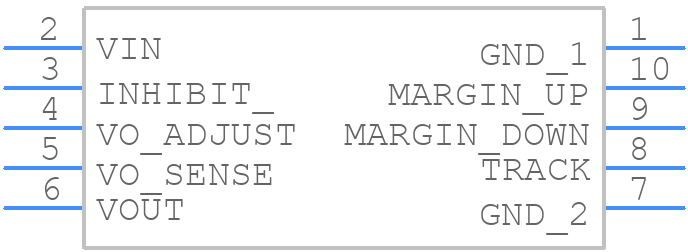

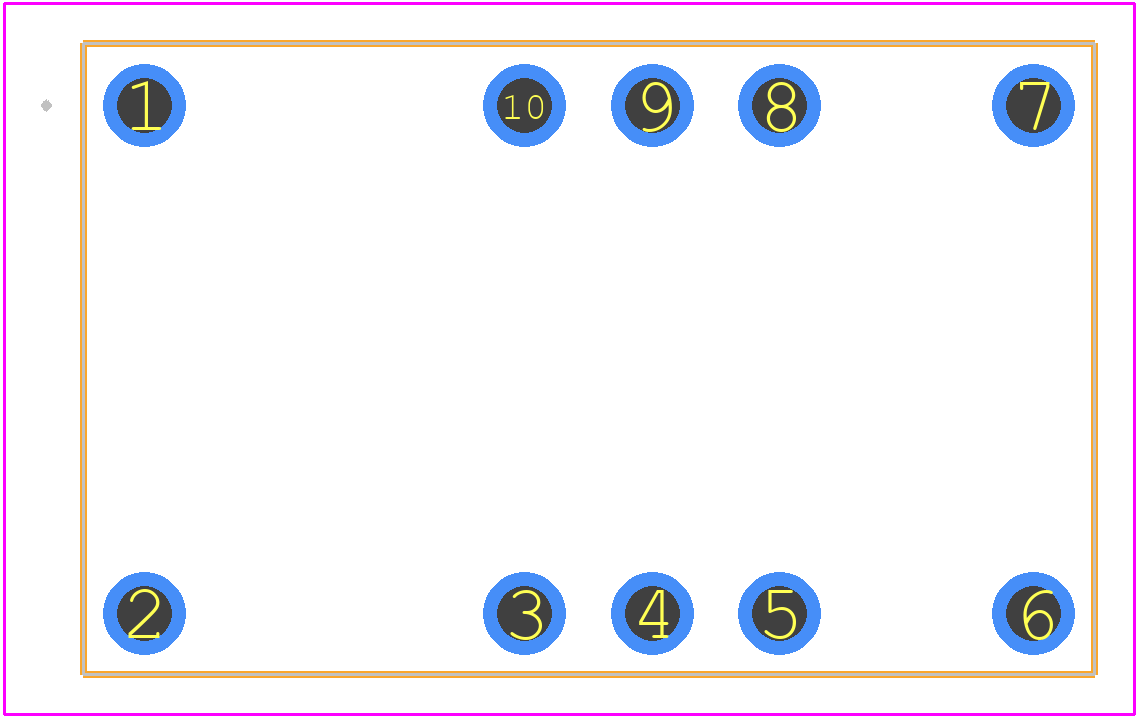

Use the download button to access the PTH05060WAH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTH05,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
