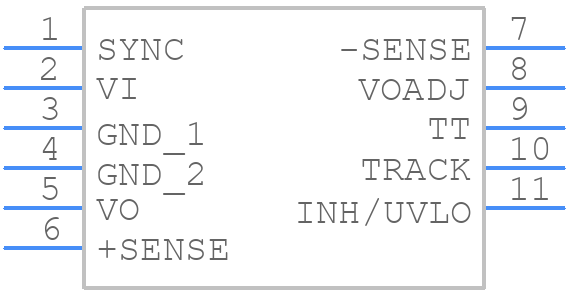

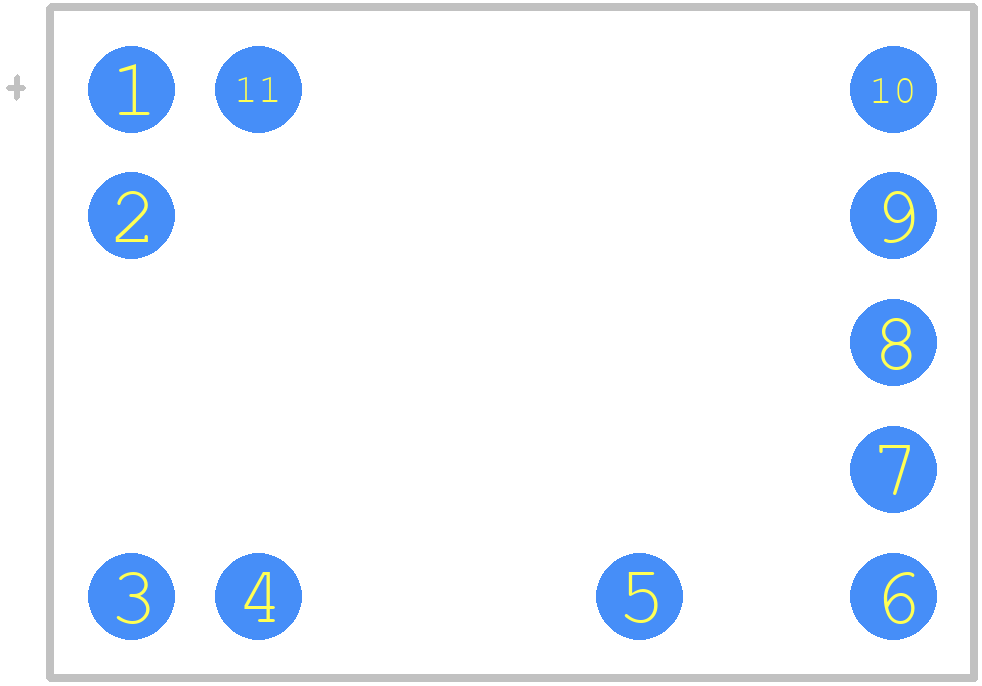

PTH08T240WAS - Texas Instruments

PTH08T240WAS Details

• Manufacturer Part Number:

  PTH08T240WAS

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFM

• Pin Count:

  11

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8504.40.85.00

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  REMOTE SHUTDOWN

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CSA

• Control Mode:

  CURRENT-MODE

• Efficiency (Main Output):

  95%

• Input Voltage-Max:

  14 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-XXMA-X11

• JESD-609 Code:

  e0

• Length:

  22.1 mm

• Line Regulation-Max:

  0.09%

• Load Regulation-Max:

  0.06%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.7 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  235

• Protections:

  OUTPUT OVER CURRENT;THERMAL

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.00353 Vrms

• Seated Height-Max:

  8.64 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  400 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  UNSPECIFIED

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  20

• Total Power Output-Max:

  33 W

• Trim/Adjustable Output:

  YES

• Width:

  15.75 mm
