The maximum operating temperature range for the PTH12030WAZ is -40°C to 125°C, but it's recommended to operate within -20°C to 100°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a sufficient heat sink, maintain a low thermal resistance between the device and the heat sink, and keep the ambient temperature within the recommended range. Additionally, consider using thermal interface materials and following Texas Instruments' thermal design guidelines.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor (X5R or X7R dielectric) to minimize voltage ripple and ensure stable operation.
While the PTH12030WAZ is a robust device, it's still susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, consider using vibration-dampening materials, securing the device firmly to the PCB, and following Texas Instruments' guidelines for vibration testing.
To troubleshoot common issues, start by verifying the input voltage, output voltage, and current. Check for proper thermal management, ensure the device is properly soldered, and review the PCB layout for any potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTH12030WAZ Overview

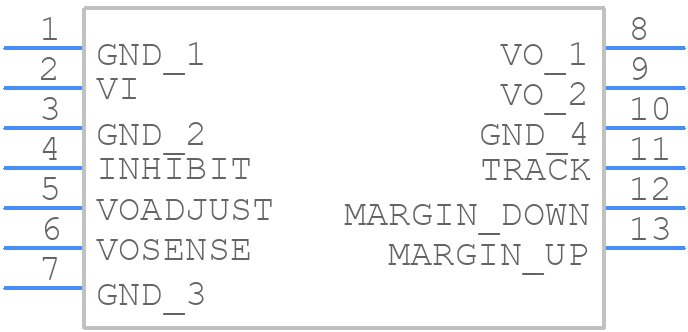

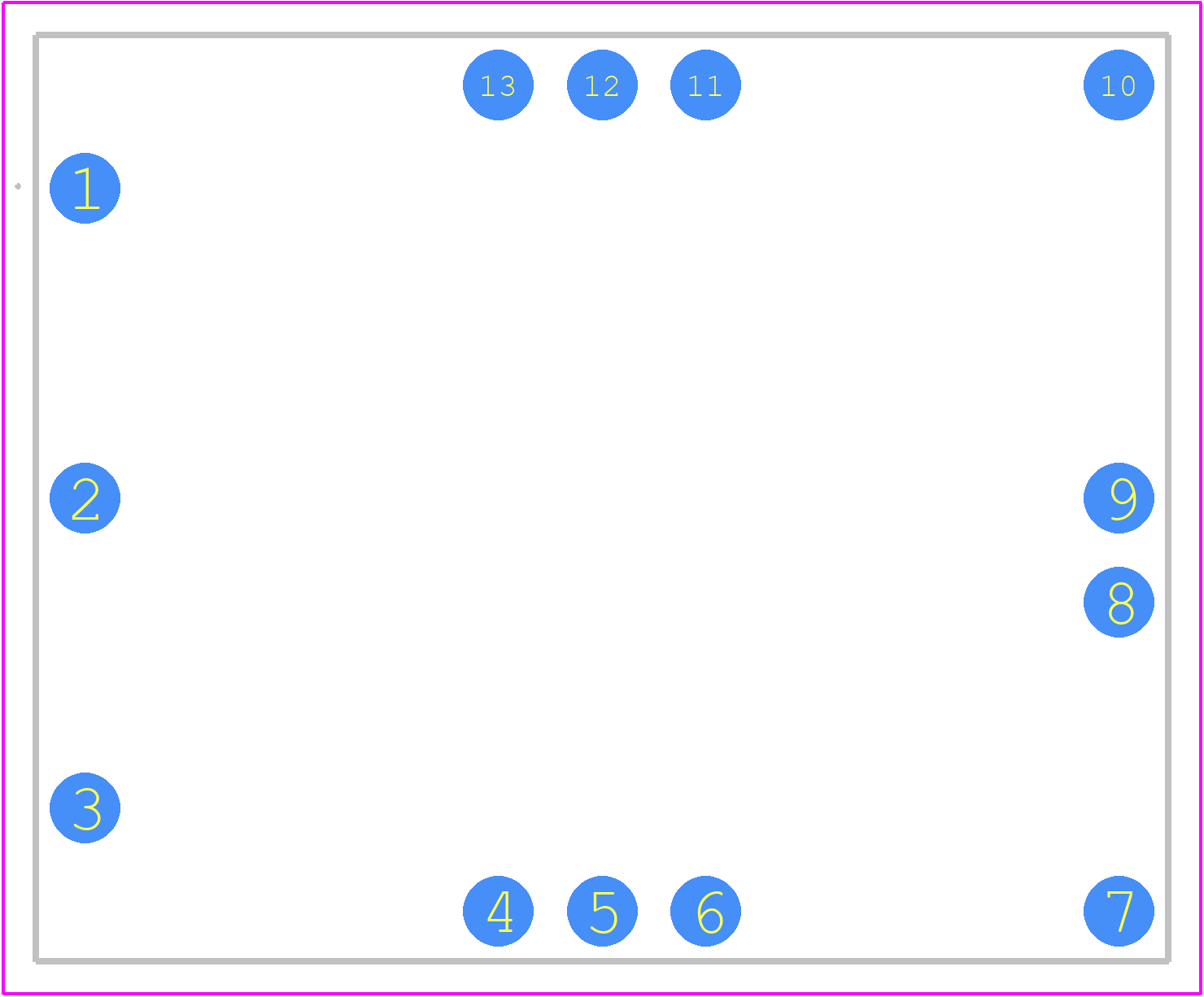

Use the download button to access the PTH12030WAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTH12,
or try a keyword search, such as Power Supply Modules
