The maximum input voltage that can be applied to the PTH12040WAH is 40V, as specified in the datasheet. However, it's recommended to derate the input voltage to ensure reliable operation and to prevent damage to the device.
To ensure the PTH12040WAH operates within its thermal limits, it's essential to provide adequate heat sinking and airflow. The device's thermal resistance (θJA) is 24°C/W, so a heat sink with a thermal resistance of 10°C/W or lower is recommended. Additionally, ensure good airflow around the device to prevent overheating.
For optimal performance and thermal management, it's recommended to follow a 2-layer or 4-layer PCB layout with a solid ground plane and a separate power plane. Keep the input and output capacitors close to the device, and use short, wide traces to minimize inductance and resistance.
Yes, the PTH12040WAH is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive reliability and is manufactured using a robust process that ensures high reliability and low defect rates.
To troubleshoot issues with the PTH12040WAH, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and thermal management. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTH12040WAH Overview

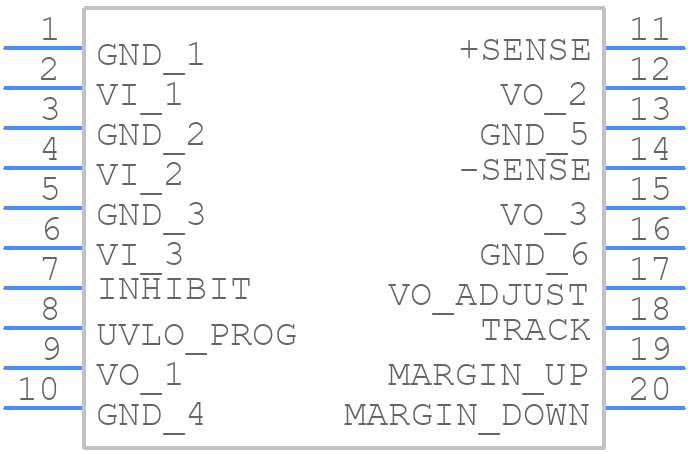

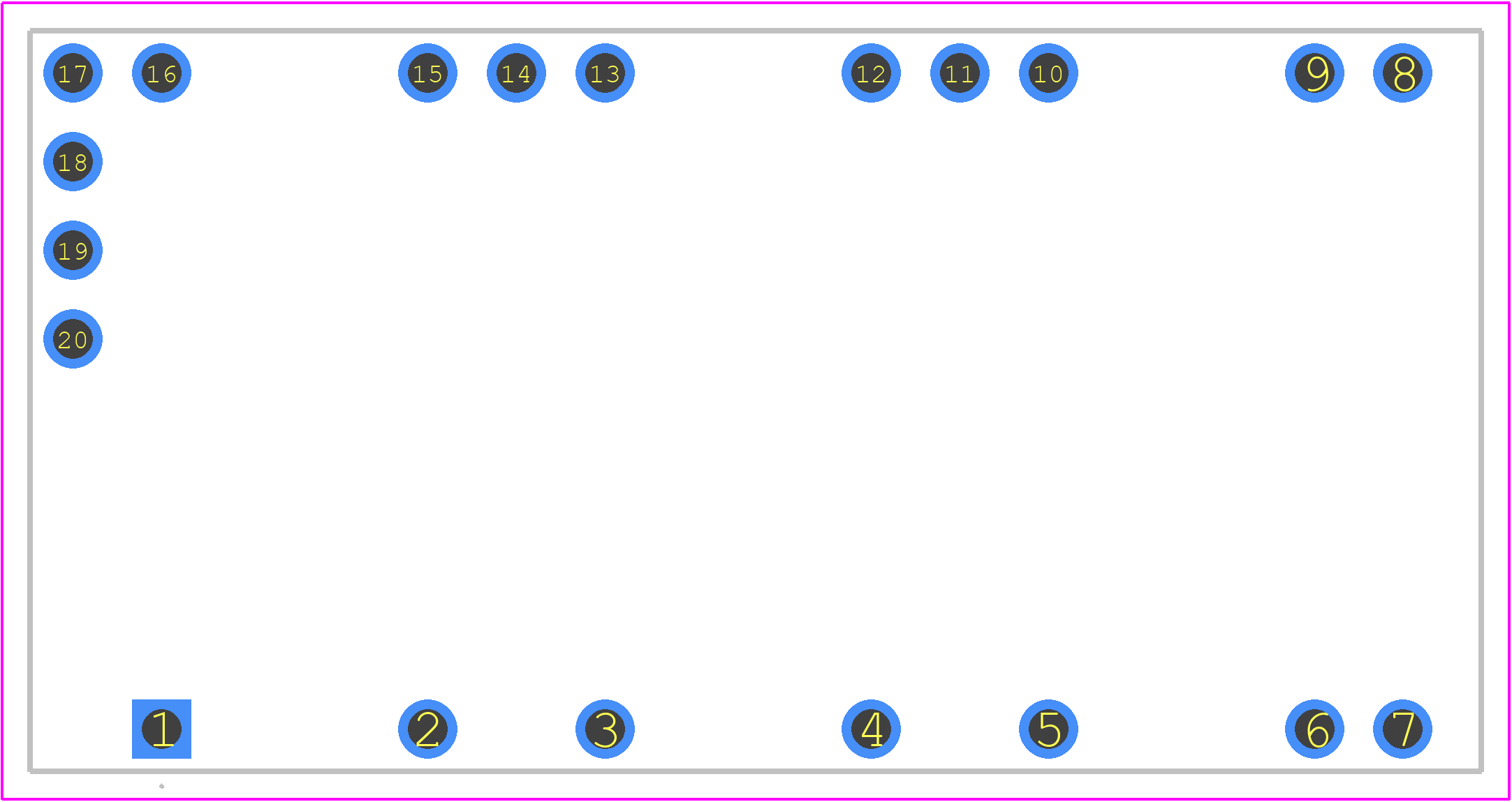

Use the download button to access the PTH12040WAH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTH12,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
