PTLIN10285DRBRQ1 - Texas Instruments

Description: Texas Instruments Automotive local interconnect network (LIN) transceiver with integrated voltage regulator 8-SON -40 to 125

Download PTLIN10285DRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

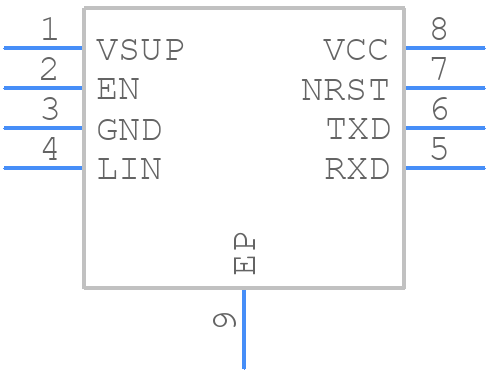

PTLIN10285DRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PTLIN10285DRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
PTLIN10285DRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

PTLIN10285DRBRQ1 Details

  • Manufacturer Part Number:

    PTLIN10285DRBRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-09-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    100 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

PTLIN10285DRBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance.
  • The PTLIN10285DRBRQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding excessive power dissipation.
  • The absolute maximum input voltage rating is 6.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The PTLIN10285DRBRQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the device in an ESD-safe environment.
  • The recommended input capacitor value is 1uF to 10uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that matches the input voltage. A ceramic or film capacitor is recommended due to their low ESR and high reliability.
