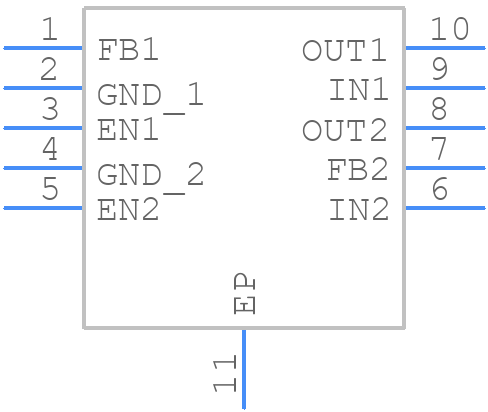

PTLV75101PDSQR - Texas Instruments

PTLV75101PDSQR Details

• Manufacturer Part Number:

  PTLV75101PDSQR

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2019-12-20

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.88 V

• Dropout Voltage1-Nom:

  0.13 V

• Dropout Voltage2-Max:

  0.88 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  1.5 V

• JESD-30 Code:

  S-PDSO-N10

• Length:

  2 mm

• Number of Functions:

  2

• Number of Outputs:

  2

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Current2-Max:

  0.5 A

• Output Voltage1-Max:

  5.5 V

• Output Voltage1-Min:

  0.55 V

• Output Voltage2-Max:

  5.5 V

• Output Voltage2-Min:

  0.55 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.08,16

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Regulator Type:

  ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  DUAL

• Width:

  2 mm
