The recommended operating voltage range for PTMUX1308QDYYRQ1 is 1.65 V to 5.5 V, with a typical operating voltage of 3.3 V or 5 V.
To ensure signal integrity, use a low-impedance PCB layout, keep signal traces short, and use a common ground plane. Additionally, use a bypass capacitor (e.g., 0.1 μF) between VCC and GND to reduce noise and voltage drops.
The PTMUX1308QDYYRQ1 can support switching frequencies up to 100 MHz, but the actual frequency limit depends on the specific application, signal quality, and PCB layout.
To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The device's junction-to-ambient thermal resistance (RθJA) is 45°C/W.
Yes, the PTMUX1308QDYYRQ1 is qualified for automotive and high-reliability applications, meeting AEC-Q100 Grade 1 standards. However, ensure you follow proper design and testing guidelines to meet the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTMUX1308QDYYRQ1 Overview

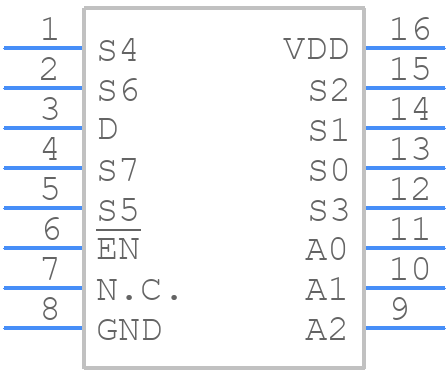

Use the download button to access the PTMUX1308QDYYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTMUX,
or try a keyword search, such as Multiplexers or Switches
