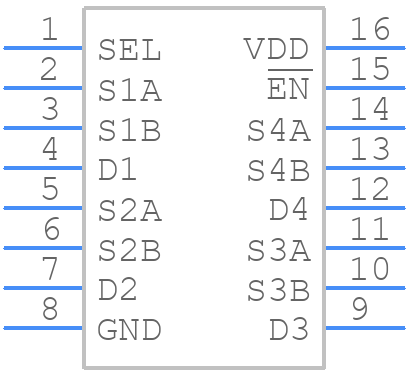

PTMUX1574DYYR - Texas Instruments

PTMUX1574DYYR Details

• Manufacturer Part Number:

  PTMUX1574DYYR

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  SOT-23,16 PIN

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2019-08-31

• Manufacturer:

  Texas Instruments

• YTEOL:

  2

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDSO-G16

• Normal Position:

  NO/NC

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  75 dB

• On-state Resistance Match-Nom:

  0.07 Ω

• On-state Resistance-Max (Ron):

  4.5 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.5 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  95 ns

• Switch-on Time-Max:

  35000 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL
