PTMUX6113PWR - Texas Instruments

Description: Texas Instruments 36-V, Low Capacitance, Low-Leakage-Current, Precision, Quad SPST Switches (Dual Open + Dual Closed) 16-TSSOP -40 to 125

Download PTMUX6113PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

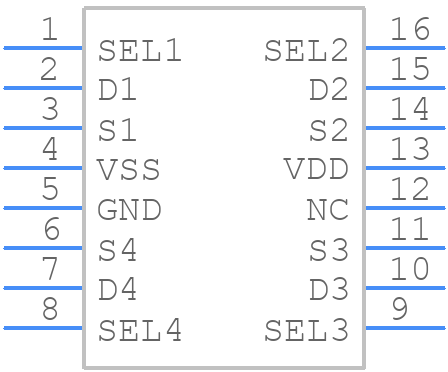

PTMUX6113PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PTMUX6113PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
PTMUX6113PWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

PTMUX6113PWR Details

  • Manufacturer Part Number:

    PTMUX6113PWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, HTQFP-100

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTMUX6113PWR Overview

Use the download button to access the PTMUX6113PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTMUX, or try a keyword search, such as Multiplexers or Switches
