PTN3361CBSMP - NXP

Description: Translation - Voltage Levels HDMI/DVI level shifter

Download PTN3361CBSMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

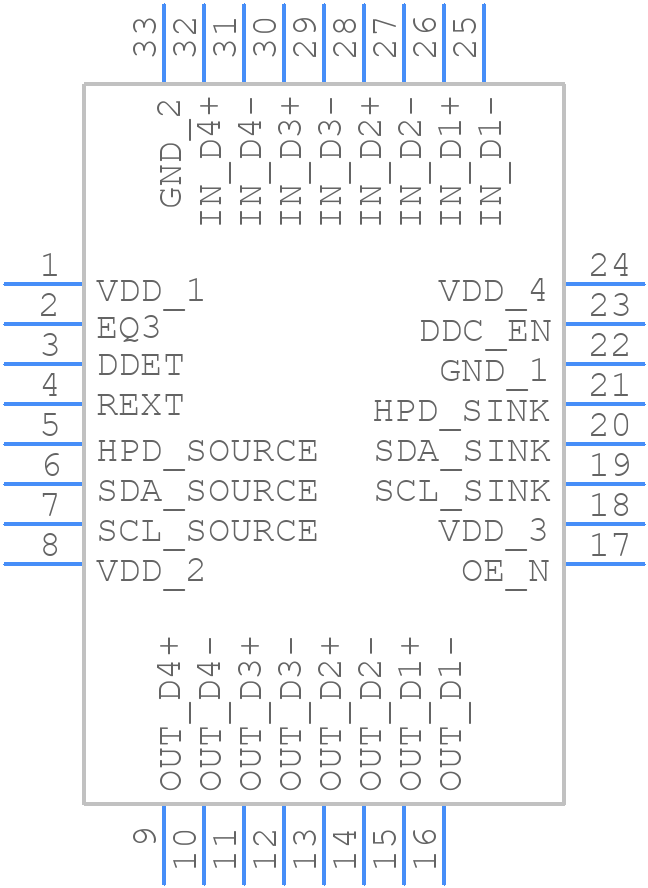

Symbol
PTN3361CBSMP - NXP - PCB symbol
click to zoom
PCB Footprints
PTN3361CBSMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PTN3361CBSMP
click to zoom
3D Models
PTN3361CBSMP - NXP - 3D model - Quad Flat No-Lead - PTN3361CBSMP
click to zoom

PTN3361CBSMP Details

  • Manufacturer Part Number:

    PTN3361CBSMP

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT617-3, HVQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT617-3

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    SEATED HEIGHT CONSIDERED NOMINAL

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

PTN3361CBSMP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PTN3361CBSMP requires a stable power supply with proper decoupling to ensure reliable operation. NXP recommends using a 3.3V or 5V power supply with a minimum of 100nF decoupling capacitor between the VCC and GND pins, and an additional 10uF capacitor for bulk decoupling.
  • The PTN3361CBSMP supports cable lengths up to 3 meters (10 feet) for HDMI 2.0 and up to 5 meters (16.4 feet) for HDMI 1.4, assuming a high-quality cable with proper shielding and termination.
  • The PTN3361CBSMP can be configured for different HDMI modes using the Mode pins (MODE0 and MODE1). NXP provides a mode selection table in the datasheet, which shows the required pin settings for each HDMI mode.
  • The PTN3361CBSMP has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. NXP recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K to ensure effective heat transfer.
