PTN3363BSMP - NXP

Description: NXP - PTN3363BSMP - LEVEL SHIFTER, HVQFN-32

Download PTN3363BSMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

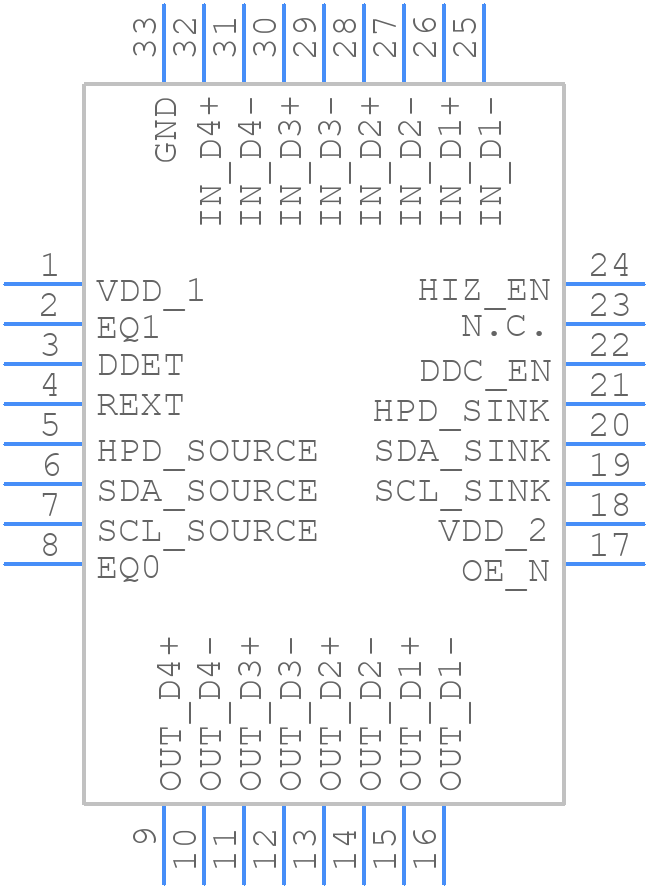

Symbol
PTN3363BSMP - NXP - PCB symbol
click to zoom
PCB Footprints
PTN3363BSMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PTN3363BSMP-1
click to zoom
3D Models
PTN3363BSMP - NXP - 3D model - Quad Flat No-Lead - PTN3363BSMP-1
click to zoom

PTN3363BSMP Details

  • Manufacturer Part Number:

    PTN3363BSMP

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT617-3, HVQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT617-3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-NOM

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

PTN3363BSMP Frequently Asked Questions (FAQs)

  • A good thermal design should be used to ensure optimal heat dissipation. A minimum of 2oz copper thickness is recommended, and thermal vias should be placed under the device to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable for the HDMI connection, and ensure that the device is placed in a shielded enclosure. Additionally, follow proper PCB layout guidelines to minimize electromagnetic radiation.
  • The maximum cable length supported by the PTN3363BSMP is 30 meters at 10.2 Gbps, but this can vary depending on the quality of the cable and the environment.
  • Use a logic analyzer or oscilloscope to debug the HDMI signal. Check the device's power supply, clock signals, and HDMI signal integrity. Consult the NXP Semiconductors support resources and application notes for further guidance.
  • While the PTN3363BSMP is designed for HDMI applications, it can be used in other high-speed differential signaling applications with proper design and testing. However, this may require additional components and custom design.
