PTN3392BS,518 - NXP

Description: Interface - Specialized DisplayPort-VGA 3.3V

Download PTN3392BS,518 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

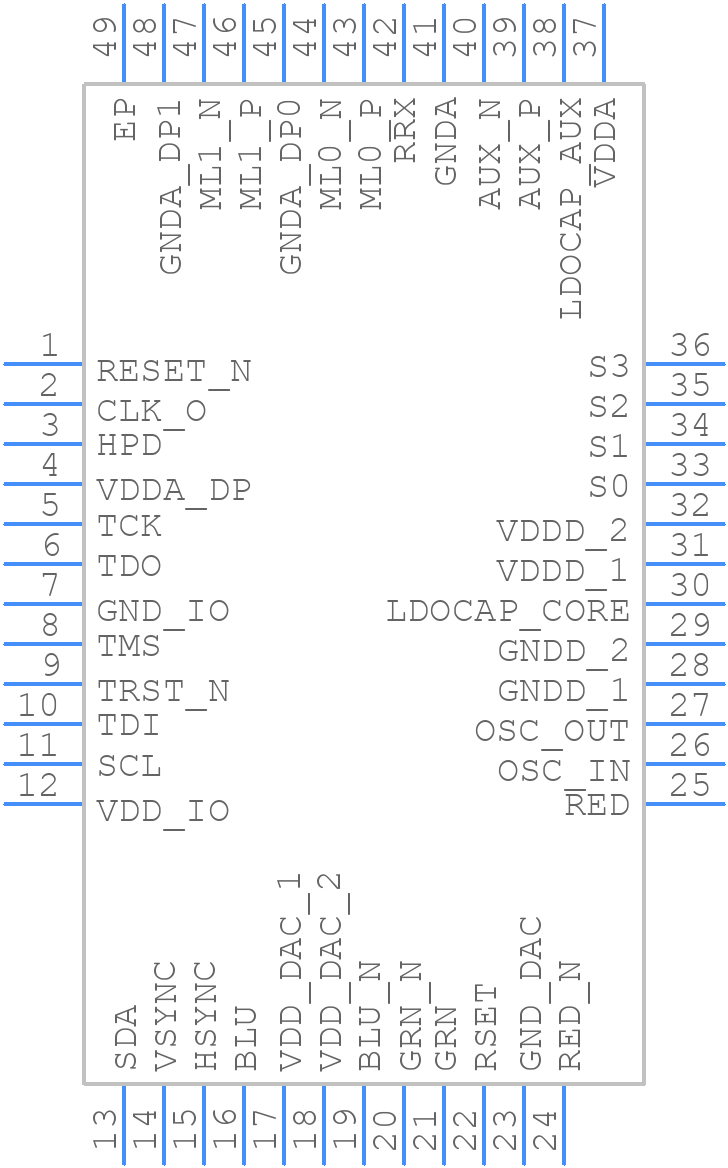

Symbol
PTN3392BS,518 - NXP - PCB symbol
click to zoom
PCB Footprints
PTN3392BS,518 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN48
click to zoom
3D Models
PTN3392BS,518 - NXP - 3D model - Quad Flat No-Lead - HVQFN48
click to zoom

PTN3392BS,518 Details

  • Manufacturer Part Number:

    PTN3392BS,518

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, 0.85 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220, SOT619-1, HVQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT619-1

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

PTN3392BS,518 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Ensure the device operates within the recommended voltage range (3.3V to 5V) and temperature range (-40°C to 85°C). Use a voltage regulator to maintain a stable voltage supply, and consider using thermal management techniques such as heat sinks or thermal pads.
  • The PTN3392BS can sink or source up to 24mA per pin, but it's recommended to limit the current to 16mA per pin to ensure reliable operation.
  • To configure the PTN3392BS for HDMI 2.0 compliance, set the device to TMDS mode, and ensure the clock frequency is set to 594MHz. Also, ensure the device is configured for 4K resolution at 60Hz, and use the recommended HDMI 2.0-compliant transmitter and receiver ICs.
  • Use a TVS (Transient Voltage Suppressor) diode with a voltage rating of 5.5V or higher, and a capacitance of 100pF or lower. Place the TVS diode as close as possible to the PTN3392BS.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTN3392BS,518 Overview

Use the download button to access the PTN3392BS,518 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN33, or try a keyword search, such as Other Signal Circuits
