PTN3460BS/F2,518 - NXP

Description: NXP - PTN3460BS/F2,518 - Interface Bridges, EDP to LVDS, 1.7 V, 3.6 V, HVQFN, 56 Pins, 0 °C

Download PTN3460BS/F2,518 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

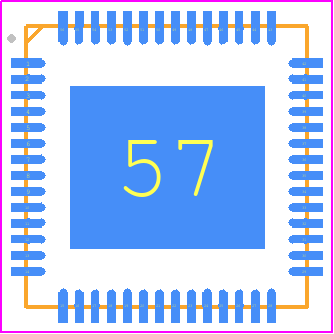

PTN3460BS/F2,518 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN56
click to zoom
3D Models
PTN3460BS/F2,518 - NXP  - 3D model - Quad Flat No-Lead - HVQFN56
click to zoom

PTN3460BS/F2,518 Details

  • Manufacturer Part Number:

    PTN3460BS/F2,518

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    56

  • Manufacturer Package Code:

    SOT949-2

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC56,.27SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

PTN3460BS/F2,518 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize EMI.
  • Ensure good thermal design, use a heat sink if necessary, and avoid blocking airflow around the device. Monitor the device temperature and adjust the system design accordingly.
  • Not using the recommended input capacitors may lead to reduced performance, increased noise, and potential instability. Always use the recommended capacitors to ensure optimal performance.
  • While the PTN3460BS can operate with input voltages between 4.5V and 5.5V, it's not recommended to deviate from the recommended 5V input voltage to ensure optimal performance and reliability.
  • Check the input voltage, ensure proper PCB layout, and verify the output voltage setting resistors (R1 and R2). Consult the datasheet and application notes for troubleshooting guidelines.
