PTN36043ABXY - NXP

Description: High Speed Basic USB Type-C Controller USB 3.1 1.8V T/R 18-Pin

Download PTN36043ABXY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

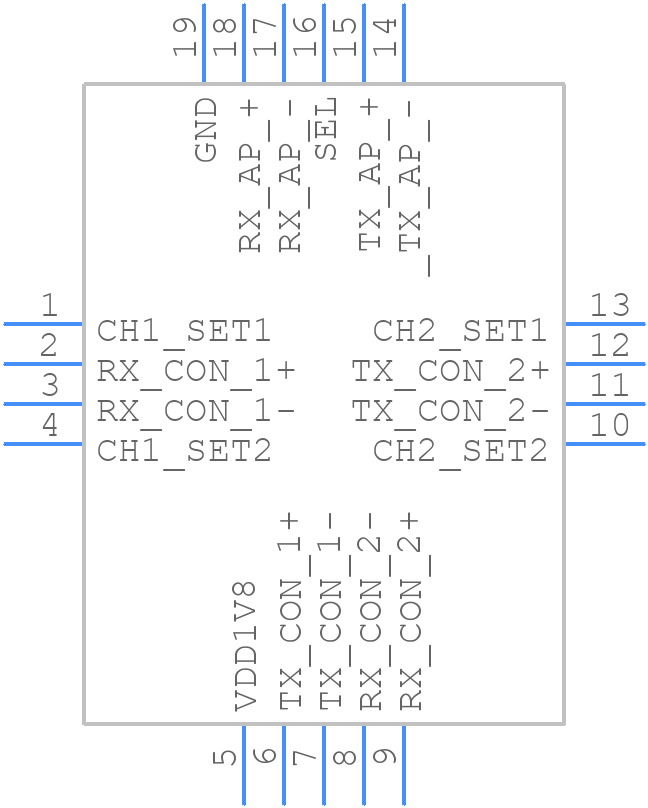

Symbol
PTN36043ABXY - NXP - PCB symbol
click to zoom
PCB Footprints
PTN36043ABXY - NXP PCB footprint - Other - Other - PTN36043ABXY-4
click to zoom
3D Models
PTN36043ABXY - NXP - 3D model - Other - PTN36043ABXY-4
click to zoom

PTN36043ABXY Details

  • Manufacturer Part Number:

    PTN36043ABXY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DHX2QFN-18

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQCC-N18

  • Length:

    2.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC18,.07X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

PTN36043ABXY Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid hot spots.
  • Monitor input voltage, output voltage, current, and temperature. Implement over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).
  • Use a shielded enclosure, keep sensitive components away from the DC-DC converter, and use a common-mode choke to reduce EMI. Ensure proper grounding and decoupling.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10 μF to 22 μF, depending on the input voltage and frequency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTN36043ABXY Overview

Use the download button to access the PTN36043ABXY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN36, or try a keyword search, such as Other Consumer ICs
