PTN36043BXY - NXP

Description: USB Interface IC USB Type-C Active Switch, SuperSpeed USB 3.1 SMD/SMT QFN-18 1.9V 113mA -40C TO +85C

Download PTN36043BXY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

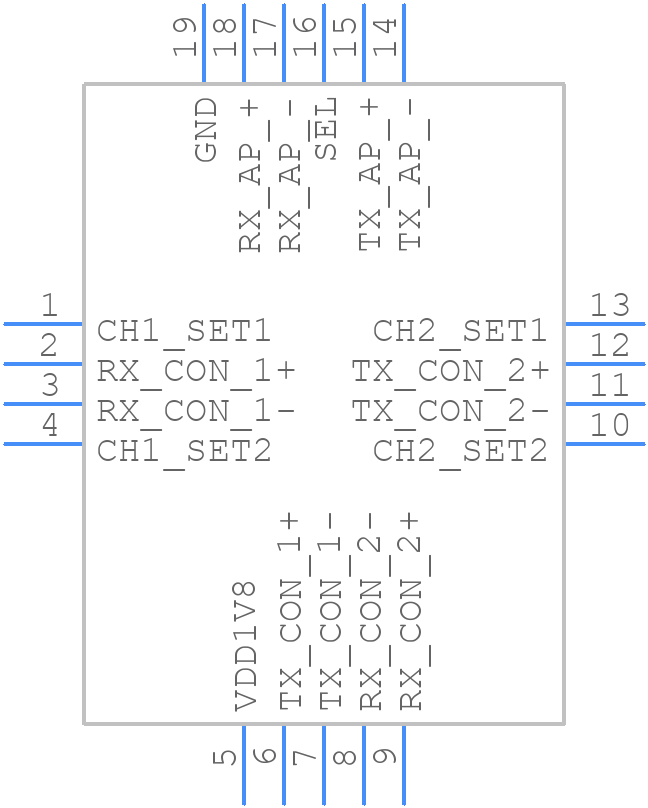

PTN36043BXY - NXP - PCB symbol
click to zoom
PCB Footprints
PTN36043BXY - NXP PCB footprint - Other - Other - DHX2QFN18
click to zoom
3D Models
PTN36043BXY - NXP - 3D model - Other - DHX2QFN18
click to zoom

PTN36043BXY Details

  • Manufacturer Part Number:

    PTN36043BXY

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DHX2QFN-18

  • Manufacturer Package Code:

    SOT1442-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    78 Weeks

  • Date Of Intro:

    2016-08-01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQCC-N18

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

PTN36043BXY Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a thermal management strategy, such as heat sinks, thermal interfaces, or fans. Ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. For input capacitors, use 10uF to 22uF, and for output capacitors, use 10uF to 47uF.
  • Use a shielded enclosure, keep sensitive components away from the PTN36043BXY, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
  • The recommended input voltage range is 3.5V to 36V. However, the device can operate with input voltages as low as 2.7V, but with reduced performance and efficiency.
