PTN36502AHQX - NXP

Description: USB Interface IC Type-C USB 3.1 Gen 1 and DisplayPort v1.2 combo redriver, I<sup>2</sup>C variant

Download PTN36502AHQX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

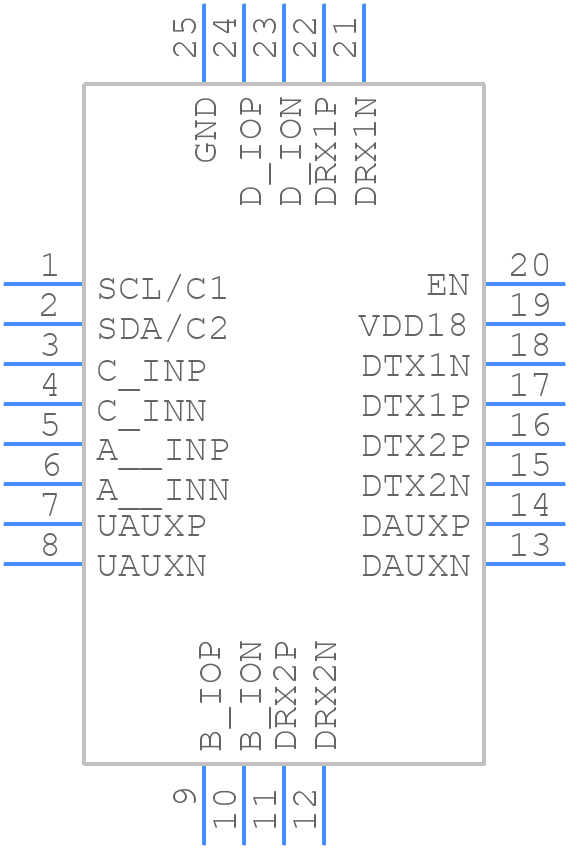

PTN36502AHQX - NXP - PCB symbol
click to zoom
PCB Footprints
PTN36502AHQX - NXP PCB footprint - Other - Other - PTN36502AHQX-4
click to zoom
3D Models
PTN36502AHQX - NXP - 3D model - Other - PTN36502AHQX-4
click to zoom

PTN36502AHQX Details

  • Manufacturer Part Number:

    PTN36502AHQX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HX2QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    3.2 mm

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.1X.12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Receive Delay-Max:

    0.6 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Transmit Delay-Max:

    0.6 ns

  • Width:

    2.4 mm

PTN36502AHQX Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. NXP recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN11524 for more details.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
  • The PTN36502AHQX has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will detect the current through Rs and limit it to the specified maximum value. Refer to the datasheet for the recommended Rs value and more details.
  • The recommended operating temperature range for the PTN36502AHQX is -40°C to 125°C. However, the device can operate up to 150°C with derating. Refer to the datasheet for more information on temperature derating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTN36502AHQX Overview

Use the download button to access the PTN36502AHQX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN36, or try a keyword search, such as Line Driver or Receivers
