PTN5100DBSMP - NXP

Description: USB Interface IC USB Type-C PD PHY and protocol IC, SPI for dongles

Download PTN5100DBSMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

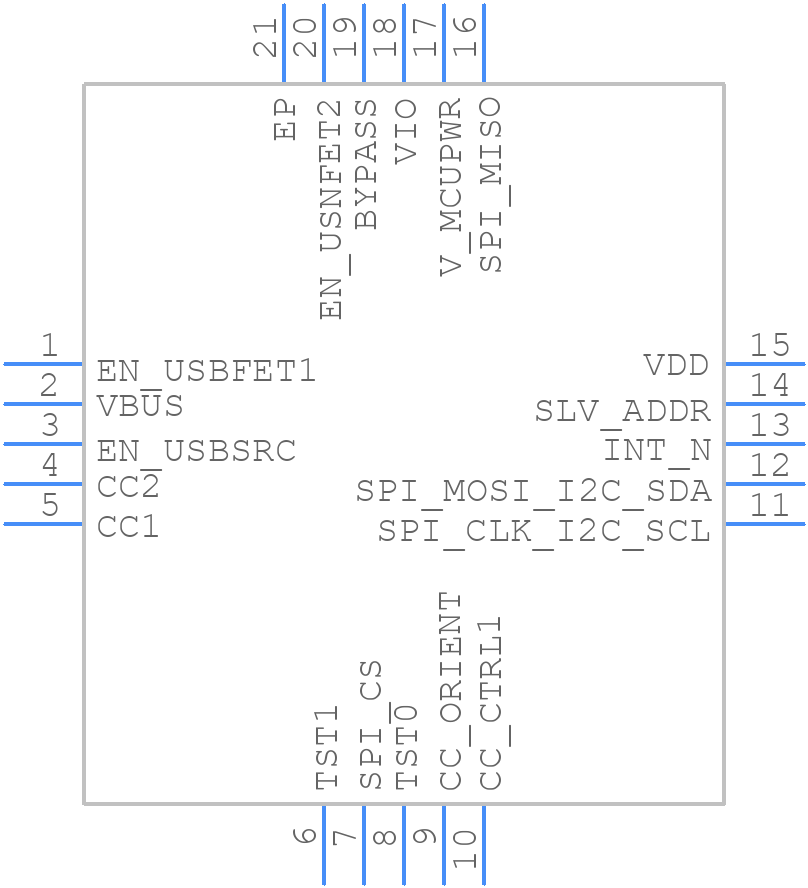

PTN5100DBSMP - NXP - PCB symbol
click to zoom
PCB Footprints
PTN5100DBSMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT917-4 (HVQFN20)
click to zoom
3D Models
PTN5100DBSMP - NXP - 3D model - Quad Flat No-Lead - SOT917-4 (HVQFN20)
click to zoom

PTN5100DBSMP Details

  • Manufacturer Part Number:

    PTN5100DBSMP

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVQFN-20

  • Manufacturer Package Code:

    SOT917-4

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

PTN5100DBSMP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane. Use a decoupling capacitor (e.g., 10nF) close to the VCC pin.
  • Use a shielded USB cable, and ensure the USB connector is properly soldered to the PCB. Implement a robust USB enumeration process, and consider using a USB reset circuit to prevent bus hang-ups.
  • The PTN5100DBSMP has a thermal pad on the bottom. Ensure good thermal conductivity by using a thermal interface material (e.g., thermal tape or thermal grease) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • The POR and BOD features are enabled by default. Ensure that your power supply can provide a stable voltage during power-up. If needed, use an external POR or BOD circuit to customize the reset behavior.
  • The PTN5100DBSMP has built-in ESD protection. However, it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-protective packaging and handling equipment to prevent damage.
