Part Image

PTN5110HQZ - NXP

Description: NXP - PTN5110HQZ - USB TYPE-C PD CTRL, USB 3.1, X2QFN-16

Download PTN5110HQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

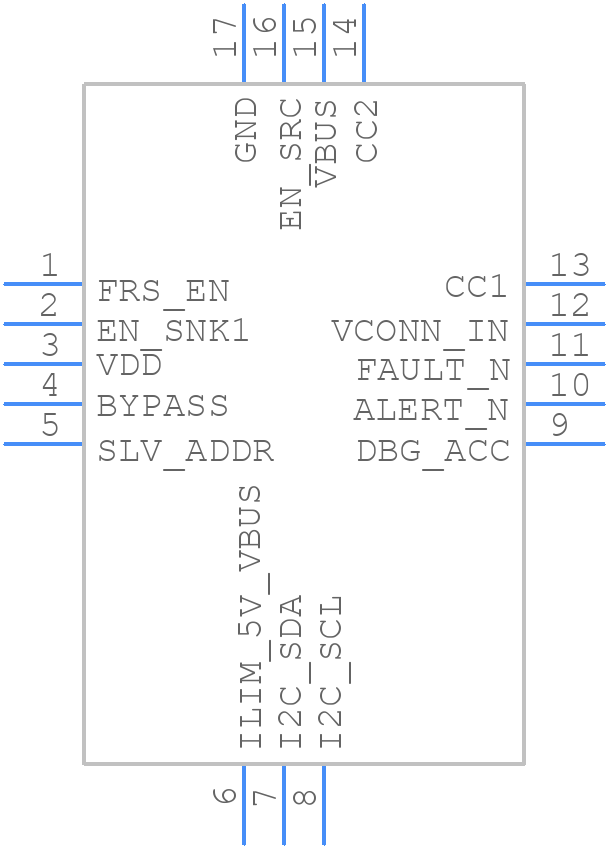

Symbol
PTN5110HQZ - NXP - PCB symbol
click to zoom
PCB Footprints
PTN5110HQZ - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PTN5110HQZ
click to zoom
3D Models
PTN5110HQZ - NXP - 3D model - Quad Flat No-Lead - PTN5110HQZ
click to zoom

PTN5110HQZ Details

  • Manufacturer Part Number:

    PTN5110HQZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HX2QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.1SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2.6 mm

PTN5110HQZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use a low-ESR capacitor for the output filter.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure the output capacitor has a low ESR (Equivalent Series Resistance). Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance).
  • The maximum input voltage that PTN5110HQZ can handle is 5.5V. Exceeding this voltage may damage the IC.
  • The PTN5110HQZ output voltage can be programmed using an external resistor divider network connected to the FB (Feedback) pin. The output voltage is determined by the ratio of the resistors in the divider network.
  • The thermal shutdown temperature of PTN5110HQZ is 150°C. The IC will shut down if the junction temperature exceeds this value.
