The PTN78060AAH can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
To ensure a stable output voltage, make sure to use a suitable output capacitor with a value between 10uF to 100uF, and a low ESR (Equivalent Series Resistance). Also, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
The PTN78060AAH can provide up to 6A of output current, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
To protect the PTN78060AAH from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at high ambient temperatures (above 85°C). Also, monitor the device's junction temperature and reduce the output current if it exceeds 125°C.
Yes, the PTN78060AAH is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTN78060AAH Overview

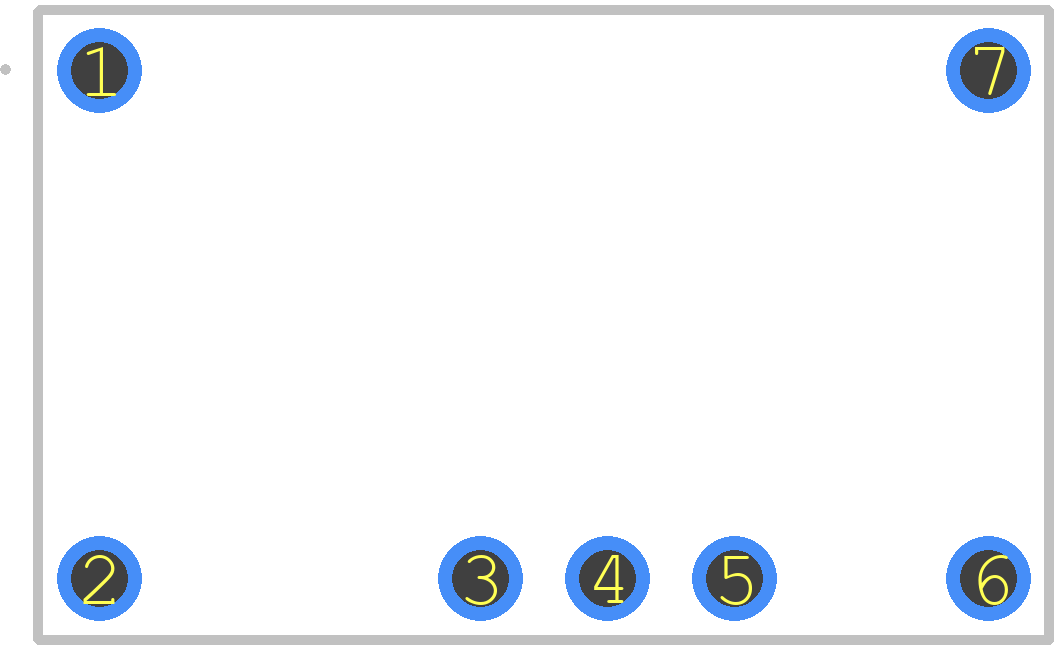

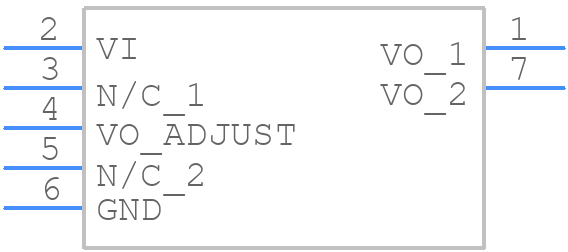

Use the download button to access the PTN78060AAH schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN78,
or try a keyword search, such as Switching Regulator or Controllers
