The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. This value is not explicitly stated in the datasheet, but it is a general guideline for most switching regulators.
To ensure the PTN78060AAS operates within its thermal limits, you should provide adequate heat sinking, such as a copper plane or a heat sink with a thermal resistance of less than 10°C/W. You should also ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
The maximum output current derating for the PTN78060AAS is 10% per 10°C above 25°C. This means that for every 10°C increase in temperature above 25°C, the maximum output current should be derated by 10%.
The PTN78060AAS is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Texas Instruments offers other devices, such as the PTN78060AAS-HP, which are specifically designed for high-reliability applications and meet the requirements of MIL-PRF-38534.
To troubleshoot issues with the PTN78060AAS, start by checking the input voltage, output voltage, and output current. Verify that the input capacitor is properly sized and that the output voltage is within the specified range. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for output voltage ripple or oscillations. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTN78060AAS Overview

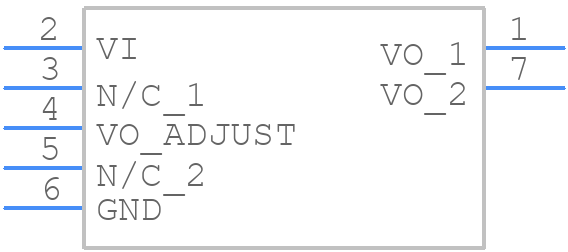

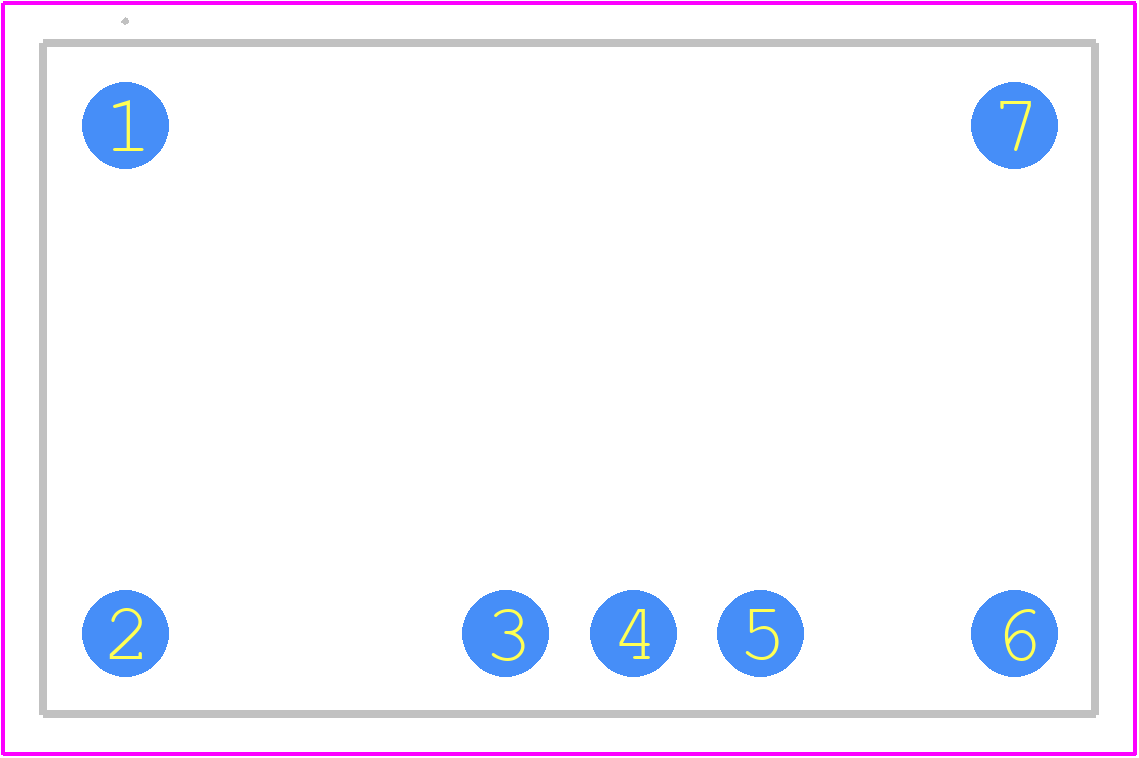

Use the download button to access the PTN78060AAS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN78,
or try a keyword search, such as Switching Regulator or Controllers
