PTPS1H200AQDGNRQ1 - Texas Instruments

Description: 40V, 200 mOhm, Single-Channel Smart High-Side Switch

Download PTPS1H200AQDGNRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

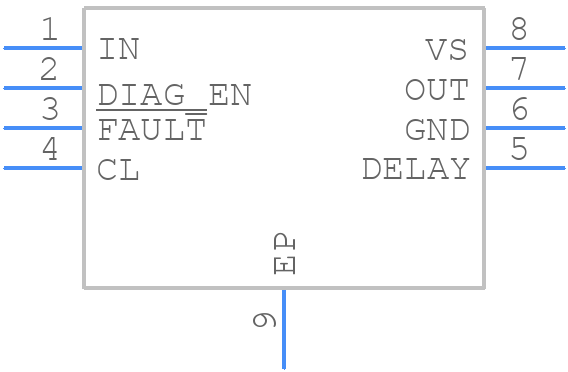

Symbol
PTPS1H200AQDGNRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PTPS1H200AQDGNRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008G
click to zoom
3D Models
PTPS1H200AQDGNRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008G
click to zoom

PTPS1H200AQDGNRQ1 Details

  • Manufacturer Part Number:

    PTPS1H200AQDGNRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-03-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

PTPS1H200AQDGNRQ1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermistor or thermal sensor to monitor the device temperature.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range.
  • Yes, but additional testing and validation may be required to ensure the device meets the specific requirements of the application. Consult with Texas Instruments or a qualified reliability engineer for guidance.
  • Consult the datasheet and application notes for troubleshooting guidelines. Also, use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the issue.
