Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the package to ensure optimal heat dissipation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including derating the output current and voltage according to the temperature derating curve provided in the datasheet.
Critical components to consider include input capacitors, output capacitors, inductors, and resistors. Ensure that these components are selected based on the recommended specifications and operating conditions to ensure reliable operation and minimize electromagnetic interference (EMI).
To troubleshoot common issues, start by verifying the input voltage, output current, and component values. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to analyze the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting and optimization.
Key considerations for EMI and EMC include proper PCB layout, shielding, and filtering. Ensure that the design meets the relevant EMC standards, such as CISPR 22 and FCC Part 15, by following the recommended design guidelines and using EMI-reducing components and techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTPS1HB50BQPWPRQ1 Overview

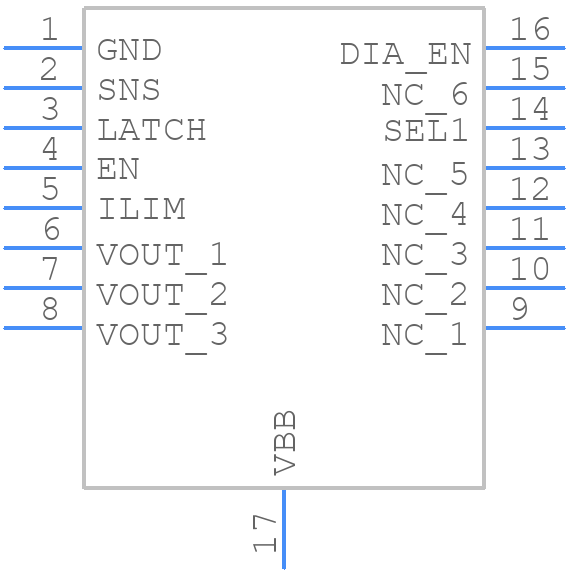

Use the download button to access the PTPS1HB50BQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTPS1,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
