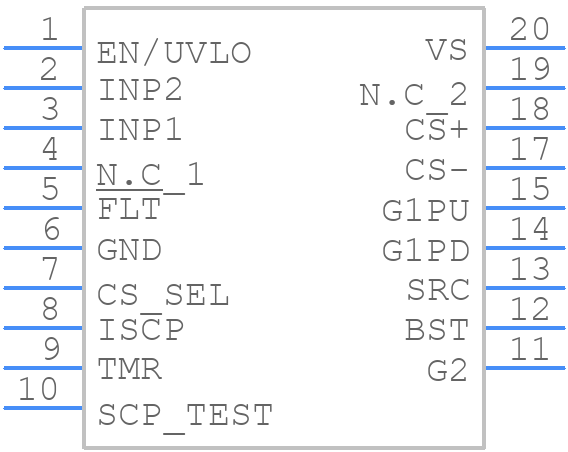

PTPS48100QDGXRQ1 - Texas Instruments

PTPS48100QDGXRQ1 Details

• Manufacturer Part Number:

  PTPS48100QDGXRQ1

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Side Driver:

  YES

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G19

• Length:

  5.1 mm

• Number of Functions:

  1

• Number of Terminals:

  19

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP19/20,.19,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max:

  100 V

• Supply Voltage-Min:

  3.5 V

• Supply Voltage-Nom:

  48 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  6.79 µs

• Turn-on Time:

  6.7 µs

• Width:

  3 mm
