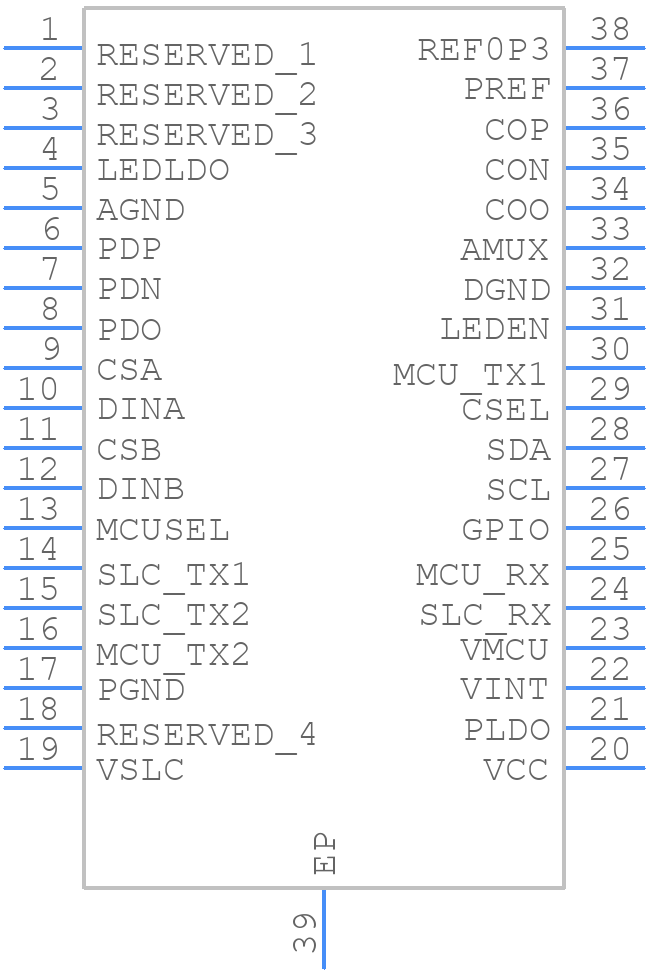

PTPS8804DCP - Texas Instruments

PTPS8804DCP Details

• Manufacturer Part Number:

  PTPS8804DCP

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Package Description:

  HTSSOP-38

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2019-10-29

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDSO-G38

• Length:

  9.7 mm

• Number of Functions:

  1

• Number of Terminals:

  38

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  15.6 V

• Supply Voltage-Min (Vsup):

  2.6 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
