Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, minimizing thermal vias, and keeping the device away from heat sources.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating conditions, use a suitable thermal interface material, and consider derating the device's power rating according to the temperature derating curve provided in the datasheet.
The maximum allowed voltage deviation on the input pins is typically ±10% of the nominal input voltage. Exceeding this limit may affect the device's performance, reliability, or even cause damage.
To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are correctly connected and that the output voltage is within the specified range. Also, verify that the device is not overheating or experiencing excessive voltage drops.
Yes, the PTPS92520QDADRQ1 can be used in a redundant or parallel configuration, but it's essential to follow Texas Instruments' guidelines and recommendations for paralleling or redundancy to ensure reliable operation and avoid potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTPS92520QDADRQ1 Overview

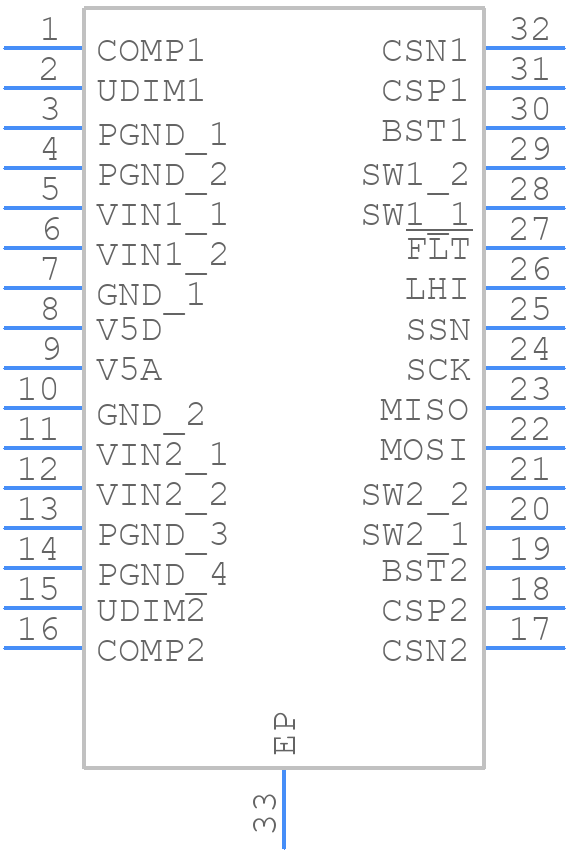

Use the download button to access the PTPS92520QDADRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTPS9,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
