Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, minimizing thermal resistance, and ensuring good airflow around the device.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating conditions, use a suitable thermal interface material, and implement proper thermal management, such as heat sinks or fans, to keep the junction temperature within the specified range.
Using a different input voltage than the recommended 12V may affect the device's performance, efficiency, and reliability. It's essential to consult the datasheet and application notes to understand the implications of using a different input voltage and to ensure the device operates within its specified limits.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback loop configuration. Ensure that the output voltage is within the specified range, and the feedback loop is properly configured. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The PTPS92610QPWPRQ1 is designed to meet EMI and RFI standards, but it's still essential to follow good design practices, such as using proper shielding, filtering, and grounding techniques, to minimize electromagnetic interference and radio-frequency interference in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTPS92610QPWPRQ1 Overview

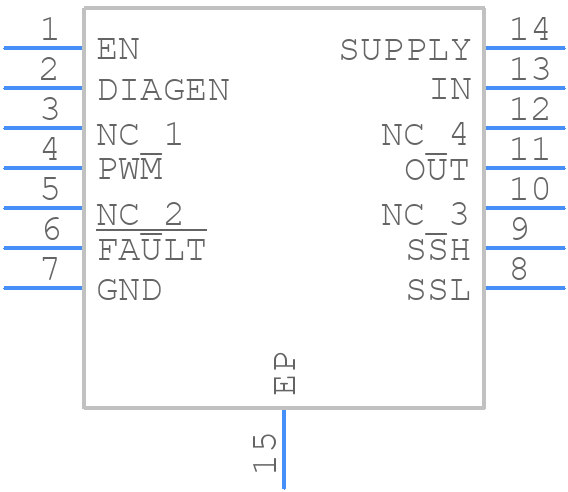

Use the download button to access the PTPS92610QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTPS9,
or try a keyword search, such as Display Drivers
