PTT111-3217A-B503 - Bourns

Description: 50k Ohm 1 Gang Linear Panel Mount Potentiometer Detent 1 Turn Carbon 0.05W, 1/20W PC Pins, Board Locks

Download PTT111-3217A-B503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

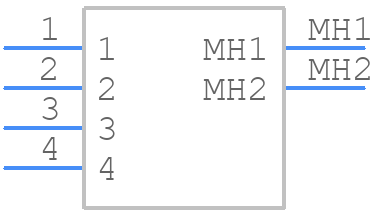

Symbol
PTT111-3217A-B503 - Bourns - PCB symbol
click to zoom

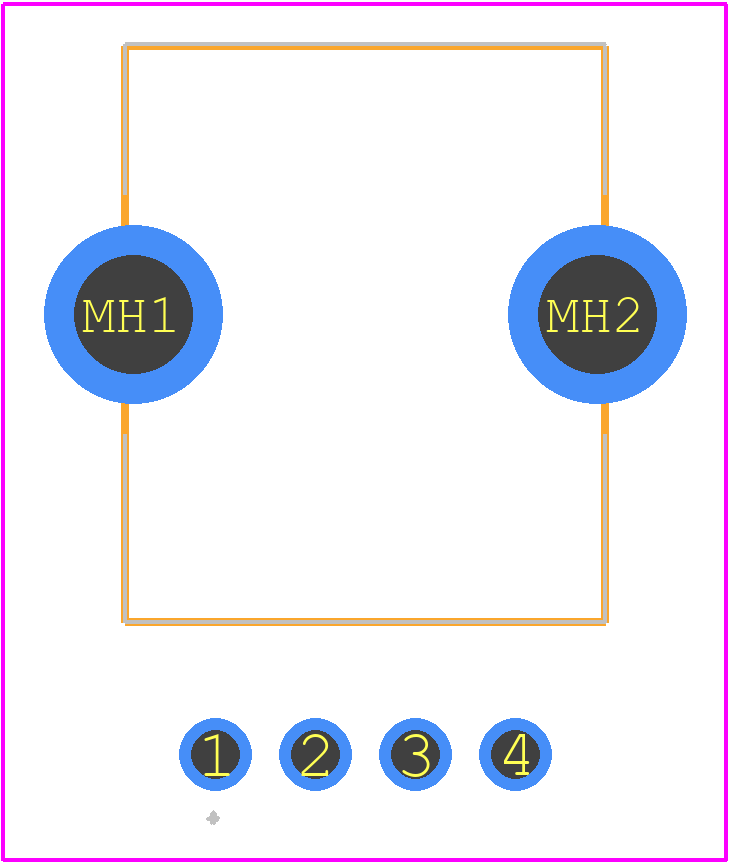

PCB Footprints
PTT111-3217A-B503 - Bourns PCB footprint - Other - Other - PTT111-3217A-B503-1
click to zoom
3D Models
PTT111-3217A-B503 - Bourns - 3D model - Other - PTT111-3217A-B503-1
click to zoom

PTT111-3217A-B503 Details

  • Manufacturer Part Number:

    PTT111-3217A-B503

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Actuator Type:

    SHAFT

  • Additional Feature:

    RATED AC VOLTAGE (V): 50

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Length:

    12 mm

  • Package Style:

    PCB Mount

  • Package Width:

    7.5 mm

  • Rated Power Dissipation (P):

    0.05 W

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    300 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    20 V

PTT111-3217A-B503 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane and a minimum of 1 oz copper thickness to minimize thermal resistance and ensure optimal performance.
  • Yes, PTT111-3217A-B503 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
  • Bourns recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the device in an ESD-protective package.
  • The maximum operating temperature range for PTT111-3217A-B503 is -40°C to +125°C, but it's recommended to derate the device's performance at temperatures above 85°C.
  • Yes, PTT111-3217A-B503 is designed to operate in humid environments, but it's recommended to follow proper conformal coating and sealing techniques to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTT111-3217A-B503 Overview

Use the download button to access the PTT111-3217A-B503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTT11, or try a keyword search, such as Potentiometers
