Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the PCB is clean and free of oxidation before soldering.
The PTV112-4420A-B103 is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
Yes, the PTV112-4420A-B103 is designed to withstand vibrations up to 10g peak acceleration, but it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress.
Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the PCB is properly grounded during assembly and testing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTV112-4420A-B103 Overview

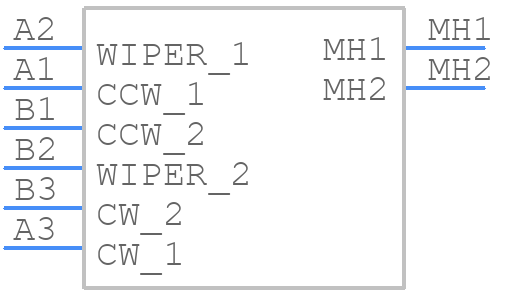

Use the download button to access the PTV112-4420A-B103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTV11,
or try a keyword search, such as Variable Resistors
