Bourns provides a recommended PCB layout and land pattern in their application notes (AN16) and on their website. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
Bourns recommends selecting a fuse with a voltage rating that matches or exceeds the maximum voltage of the PTVS10-066C-M. The fuse's current rating should be chosen based on the device's maximum current rating and the system's specific requirements. Consult the fuse manufacturer's datasheet and Bourns' application notes for guidance.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the device's derating curves and thermal management when operating at high temperatures. Consult Bourns' application notes and thermal management guidelines for more information.
The PTVS10-066C-M is a commercial-grade device, but Bourns offers similar devices with higher reliability ratings (e.g., PTVS10-066C-MH) that meet the requirements of high-reliability or automotive applications. Consult Bourns' website or contact their support team for more information.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Consult Bourns' application notes and EMC guidelines for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTVS10-066C-M Overview

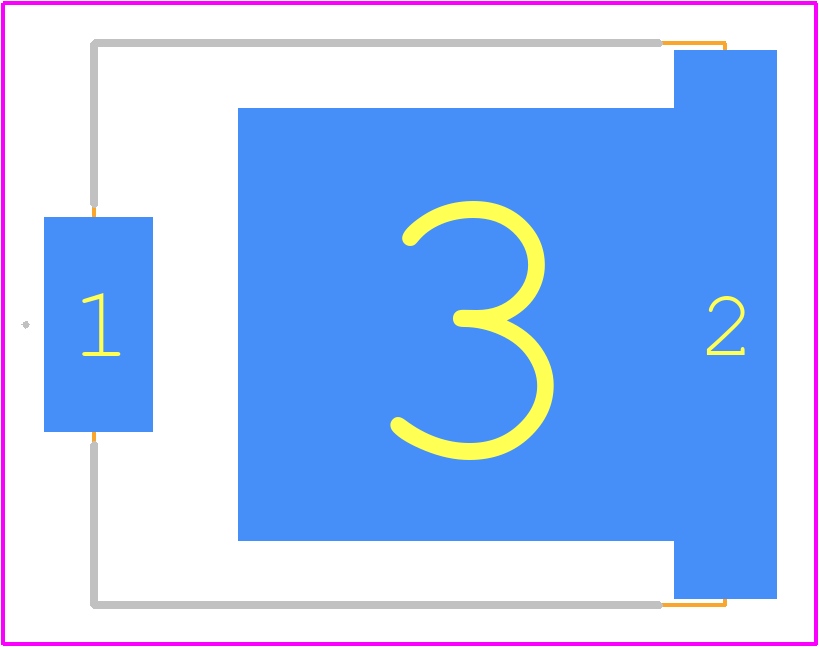

Use the download button to access the PTVS10-066C-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1,
or try a keyword search, such as Transient Suppressors
