Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
To select the correct PTVS device, consider factors such as the maximum voltage, current, and power rating required, as well as the desired response time and clamping voltage. Consult the Bourns selection guide or contact a Bourns application engineer for assistance.
The PTVS10-086C-M has a specific voltage rating, response time, and clamping voltage compared to other devices in the same family. The 'C' in the part number indicates a bidirectional device, and the 'M' indicates a molded package. Consult the datasheet and Bourns documentation for specific details on each device.
The PTVS10-086C-M is rated for operation up to 150°C, but derating may be necessary for high-temperature applications. Consult the datasheet and Bourns application notes for guidance on high-temperature use.
To ensure reliability and longevity, follow proper PCB layout and assembly guidelines, avoid exceeding the device's ratings, and consider environmental factors such as temperature and humidity. Consult the Bourns reliability and quality documentation for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTVS10-086C-M Overview

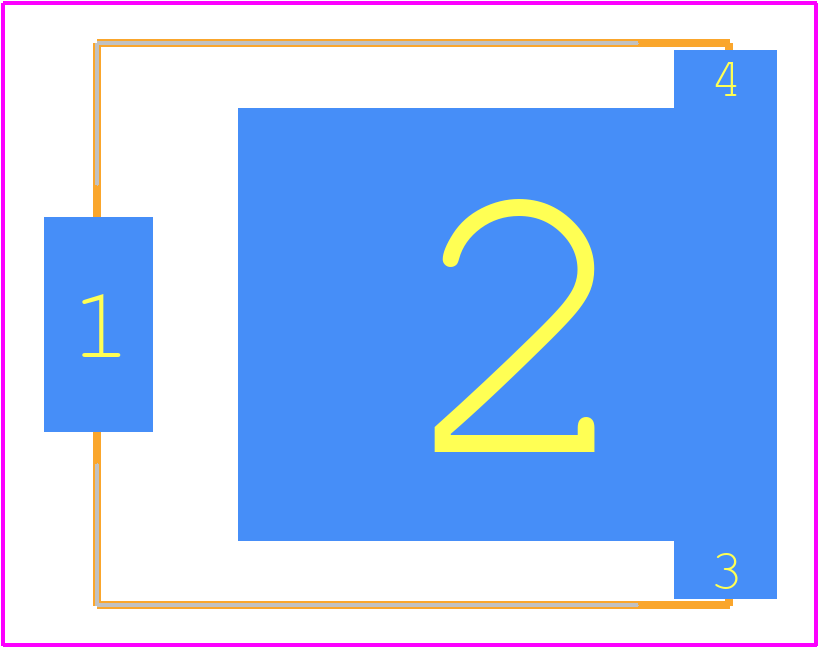

Use the download button to access the PTVS10-086C-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1,
or try a keyword search, such as Transient Suppressors
