PTVS2700DRVR - Texas Instruments

Description: 27V Flat-Clamp Surge Protection Device

Download PTVS2700DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

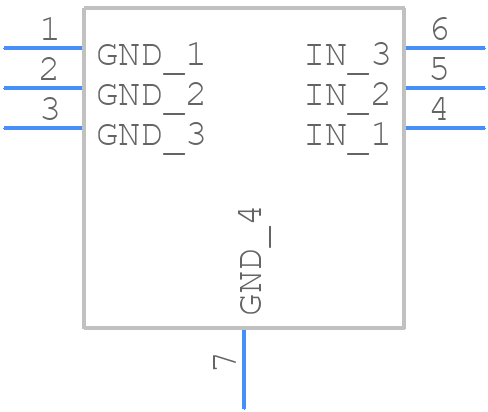

PTVS2700DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PTVS2700DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
PTVS2700DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

PTVS2700DRVR Details

  • Manufacturer Part Number:

    PTVS2700DRVR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Date Of Intro:

    2017-12-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTVS2700DRVR Overview

Use the download button to access the PTVS2700DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS2, or try a keyword search, such as Transient Suppressors
