PTVS5V0P1UTP,115 - Nexperia

PTVS5V0P1UTP,115 Details

• Manufacturer Part Number:

  PTVS5V0P1UTP,115

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOD

• Package Description:

  SOD-128, 2 PIN

• Pin Count:

  2

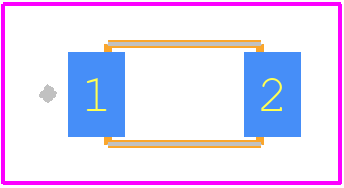

• Manufacturer Package Code:

  SOD128

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  6.91

• Additional Feature:

  MIL-STD-883

• Breakdown Voltage-Max:

  7 V

• Breakdown Voltage-Min:

  6.4 V

• Breakdown Voltage-Nom:

  6.7 V

• Clamping Voltage-Max:

  9.2 V

• Configuration:

  SINGLE, 1 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-F2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  600 W

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  185 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Reference Standard:

  AEC-Q101; IEC-60134; IEC-61000-4-2; IEC-61643-321

• Rep Pk Reverse Voltage-Max:

  5 V

• Reverse Current-Max:

  400 µA

• Reverse Test Voltage:

  5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  FLAT

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
