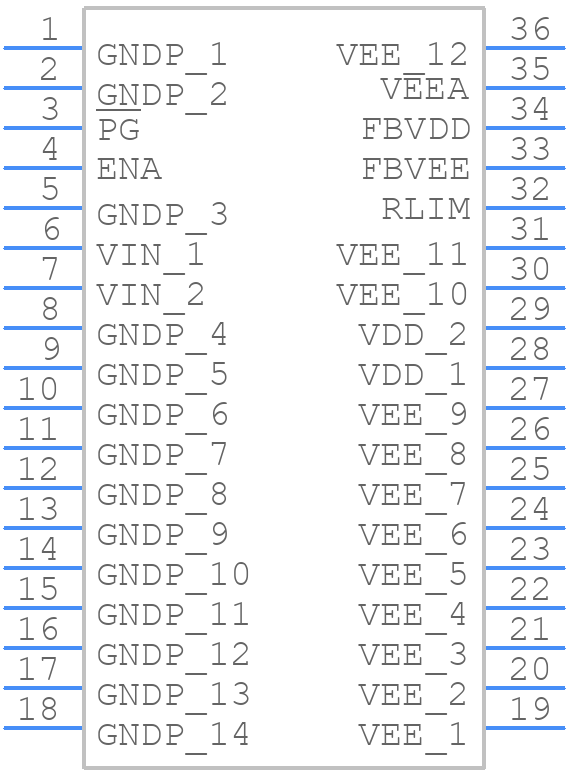

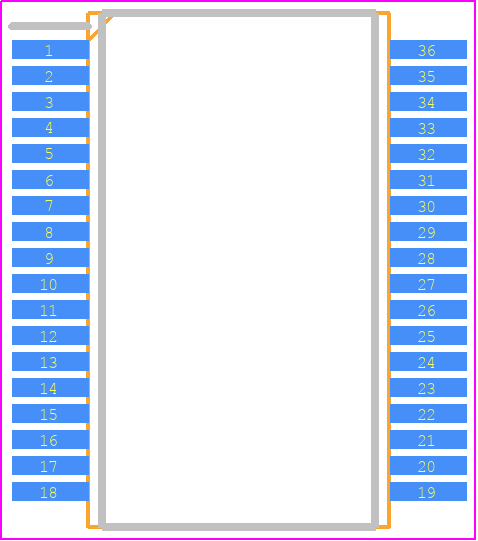

PUCC14131QDWNQ1 - Texas Instruments

PUCC14131QDWNQ1 Details

• Manufacturer Part Number:

  PUCC14131QDWNQ1

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SO-MOD, 36 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  8.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G36

• Length:

  12.83 mm

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  36

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.1 A

• Output Voltage-Max:

  15 V

• Output Voltage-Min:

  10 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP36,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  3.55 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  20500 kHz

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
