Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the PCB material has a high thermal conductivity to dissipate heat efficiently.
The PUCC21540DW has a high power dissipation, so thermal management is crucial. Use a heat sink with a thermal interface material, ensure good airflow, and consider using a thermal pad or thermal tape to improve heat transfer. Monitor the junction temperature (TJ) and ensure it stays within the recommended operating range.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum voltage rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a common-mode choke or ferrite beads to reduce electromagnetic interference (EMI).
The recommended input capacitance value is not explicitly stated in the datasheet, but a general guideline is to use a capacitance value between 10nF to 100nF, depending on the specific application and noise requirements. A larger capacitance value can help filter out high-frequency noise, but may affect the device's response time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PUCC21540DW Overview

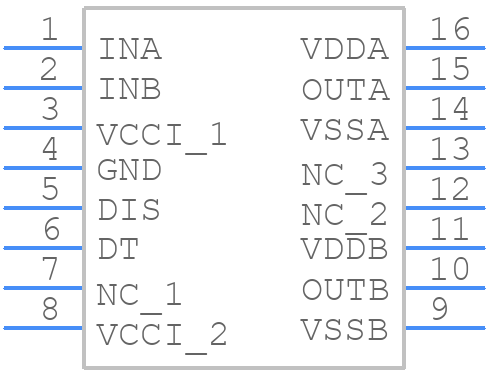

Use the download button to access the PUCC21540DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUCC2,
or try a keyword search, such as MOSFET Drivers
