PUMD15,115 - Nexperia

Description: Bipolar Transistors - Pre-Biased TRNS DOUBL RET TAPE7

Download PUMD15,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

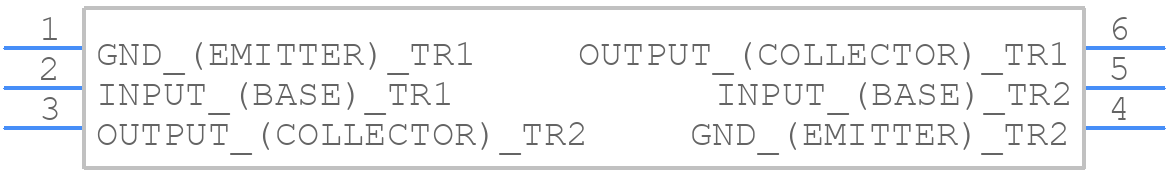

PUMD15,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PUMD15,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363_2022
click to zoom
3D Models
PUMD15,115 - Nexperia - 3D model - SOT23 (6-Pin) - SOT363_2022
click to zoom

PUMD15,115 Details

  • Manufacturer Part Number:

    PUMD15,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

PUMD15,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the PUMD15,115 near a thermal pad or a heat sink, using a large copper area for heat dissipation, and minimizing thermal resistance by using thermal vias.
  • To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended derating curves for the device.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, increased thermal resistance, and potentially catastrophic failure of the device.
  • To protect the device from EOS, use a transient voltage suppressor (TVS) or a zener diode to clamp voltage transients, and ensure that the device is operated within the recommended voltage and current ratings.
  • The recommended soldering conditions for the PUMD15,115 involve using a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 2 to 5 seconds.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PUMD15,115 Overview

Use the download button to access the PUMD15,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUMD1, or try a keyword search, such as Small Signal Bipolar Transistors
