Part Image

PUMD16 - Nexperia

Description: PUMD16, Digital Transistor, NPN, PNP 100mA 50V 22kΩ, Ratio Of 0.476, 6-Pin UMT

Download PUMD16 Model

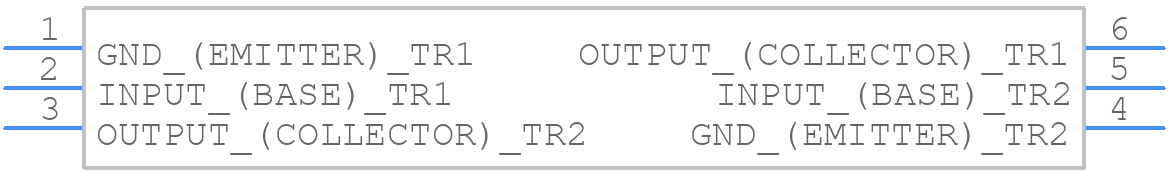

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PUMD16 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363 (SC-88)_a
click to zoom
3D Models
PUMD16 - Nexperia  - 3D model - SOT23 (6-Pin) - SOT363 (SC-88)_a
click to zoom

PUMD16 Details

  • Manufacturer Part Number:

    PUMD16

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, SOT-363, TSSOP-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 2.1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    2.5 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Reference Standard:

    AEC-Q101; IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • VCEsat-Max:

    0.15 V

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PUMD16 Overview

Use the download button to access the PUMD16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUMD1, or try a keyword search, such as Small Signal Bipolar Transistors

Parts related to PUMD16

Showing 0 results

PUMD16 Alternates

Showing results

Image Part Number Model
Part Image PUMD16 NXP Semiconductors

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal

Part Image PUMD16,115 NXP Semiconductors

PEMD16; PUMD16 - NPN/PNP resistor-equipped transistors; R1 = 22 k Ohm, R2 = 47 k Ohm TSSOP 6-Pin
