PUMD2,115 - Nexperia

Description: NXP, PUMD2,115 NPN+PNP Digital Transistor, 100 mA 50 V 22 kΩ, Ratio Of 1, 6-Pin UMT

Download PUMD2,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

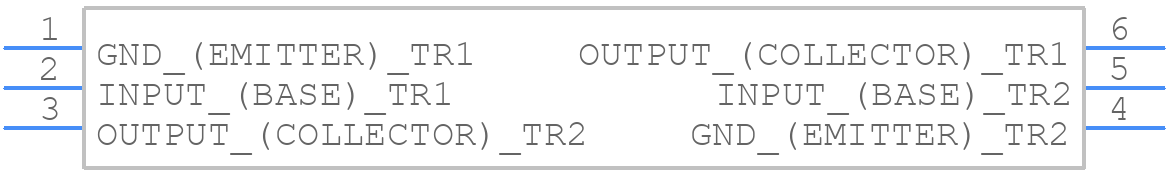

PUMD2,115 - Nexperia - PCB symbol
