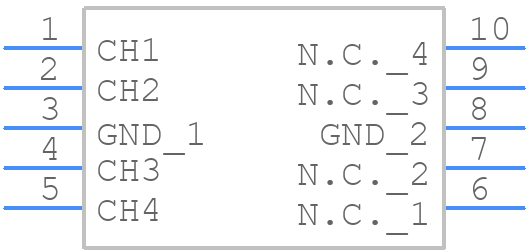

PUSB3FR4Z - Nexperia

PUSB3FR4Z Details

• Manufacturer Part Number:

  PUSB3FR4Z

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Package Description:

  DFN2510A-10, SOT-1176-1, 10 PIN

• Pin Count:

  10

• Manufacturer Package Code:

  SOT1176-1

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2017-02-17

• Manufacturer:

  Nexperia

• YTEOL:

  6

• Breakdown Voltage-Min:

  5.5 V

• Breakdown Voltage-Nom:

  9 V

• Clamping Voltage-Max:

  3 V

• Configuration:

  COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-N10

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  21 W

• Number of Elements:

  4

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Reference Standard:

  IEC-60134; IEC-61000-4-2, 4-5

• Rep Pk Reverse Voltage-Max:

  5 V

• Reverse Current-Max:

  0.1 µA

• Reverse Test Voltage:

  5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40
