PV08-5,08-V-P footprint, schematic symbol and 3D model by Euroclamp

Symbol

click to zoom

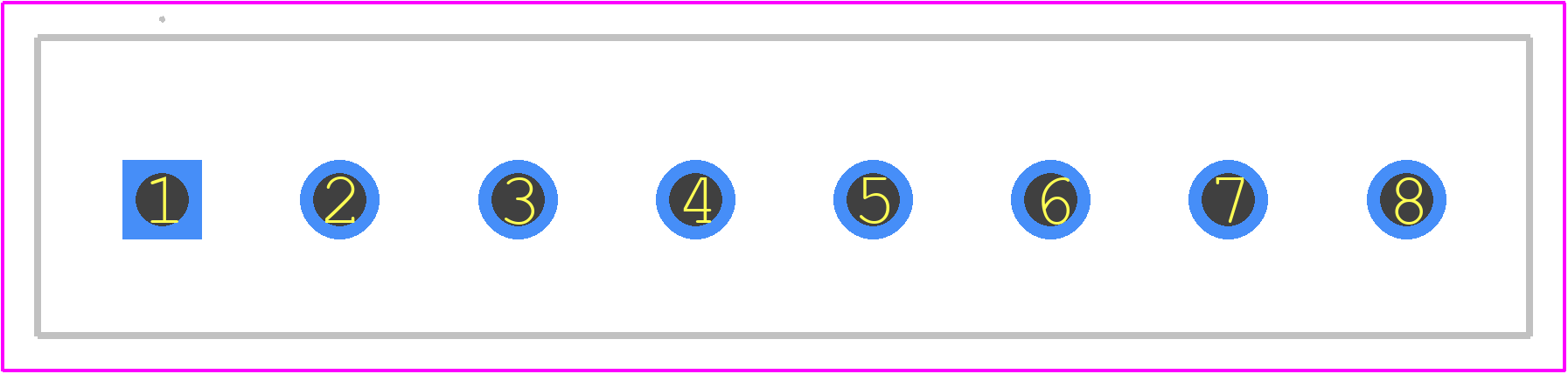

PCB Footprints

PV08-5,08-V-P - Euroclamp PCB footprint - Other - Other - PV08-5,08-V-P-2

click to zoom

3D Models

PV08-5,08-V-P - Euroclamp - 3D model - Other - PV08-5,08-V-P-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PV08-5,08-V-P
Part Number PV08-5,08-V-P
Manufacturer Euroclamp
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - PV08-5,08-V-P-2
Released Date Jun 20, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PV08-5,08-V-P Details

Manufacturer Part Number:
PV08-5,08-V-P
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
euroclamp
Additional Feature:
STANDARD: PA, UL 94V-0
Fastening Method:
CONNECTOR
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
8
Rated Current:
12 A
Rated Voltage:
250 V
Safety Approval:
CUL; IMQ; UL; VDE
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK

Trust Checks

Community Provided

System Verified

Community Approved

PV08-5,08-V-P Overview

Use the download button to access the PV08-5,08-V-P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PV08-, or try a keyword search, such as Terminals and Terminal Blocks
